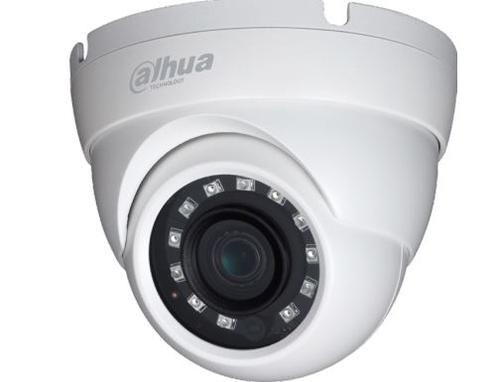

Lite HDW1500MN-0280B security camera Dome
2592 x 1944 pixels Ceiling/Wall/Pole
Model HDW1500MN-0280BEAN 6939554951862
66 specifications
- TypeDome
- Weight280 g
- ColourWhite
- Wide Dynamic Range (WDR)Yes
- Sensor typeCMOS
- Number of lenses1
Overview
- Type
- Dome
- Weight
- 280 g
- Colour
- White
- Wide Dynamic Range (WDR)
- Yes
- Sensor type
- CMOS
- Number of lenses
- 1
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HDW1500MN-0280B
- Part number
- HDW1500MN-0280B
- EAN / UPC
- 6939554951862
- Also known as
- Dahua Technology Lite HDW1500MN-0280B security camera Dome 2592 x 1944 pixels Ceiling/Wall/Pole
Specifications
66 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | EN55032, EN55024, EN50130-4 FCC (CFR 47 FCC 15 / B, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
| Housing material | Aluminium |
| Protection features | Dust resistant, Water resistant |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 77.5° |
| Lens viewing angle, vertical | 49° |
| Lens viewing angle, diagonal | 98° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/30~1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Detect distance | 63 m |
| Observe distance | 25 m |
| Recognize distance | 13 m |
| Fixed focus | Yes |
| Maximum aperture number | 1.85 |
| Closest focusing distance | 1.4 m |
| Fixed focal length | 2.8 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 12 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2592 x 1944 pixels |
| Total megapixels | 5 MP |
| Supported video modes | 1080p |
| Analog signal format system | NTSC |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction |
| Gain control type | Auto |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 3.6 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Diameter | 9.34 cm |
| Length | 79.4 mm |
| Weight | 280 g |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 380 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
