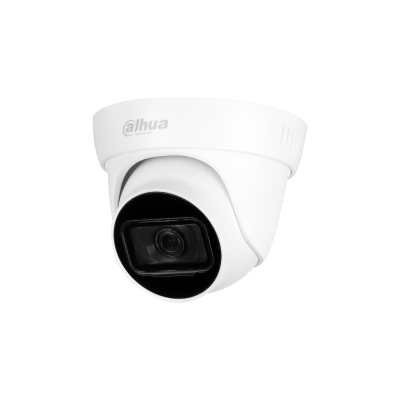

DH-HAC HDW1400TL Turret Indoor & outdoor
2560 x 1440 pixels Ceiling
Model HDW1400TLPart no. HAC-HDW1400TL-0280BEAN 6939554973918
50 specifications
- ConnectivityWired
- TypeTurret
- Weight220 g
- ColourWhite
- Placement supportedIndoor & outdoor
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- Turret
- Weight
- 220 g
- Colour
- White
- Placement supported
- Indoor & outdoor
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HDW1400TL
- Part number
- HAC-HDW1400TL-0280B
- EAN / UPC
- 6939554973918
- Also known as
- Dahua Technology DH-HAC HDW1400TL Turret Indoor & outdoor 2560 x 1440 pixels Ceiling
Specifications
50 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Remote viewing | Yes |
| Certification | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Turret |
| Mounting type | Ceiling |
| Product colour | White |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.03 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 76.4° |
| Lens viewing angle, vertical | 41.6° |
| Lens viewing angle, diagonal | 89.5° |
| Tilt angle range | 0 - 78° |
| Pan range | 0 - 360° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Number of effective pixels (H x V) | 2560 x 1440 pixels |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 2.8mm; 3.6mm |
| Maximum aperture number | 2 |
| Closest focusing distance | 0.8 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2560 x 1440 pixels |
| Total megapixels | 4 MP |
| Frame rate | 30 fps |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
| Supported network protocols | CVI/TVI/AHD/CVBS |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 4 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 85.8 mm |
| Diameter | 9.7 cm |
| Weight | 220 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 280 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
