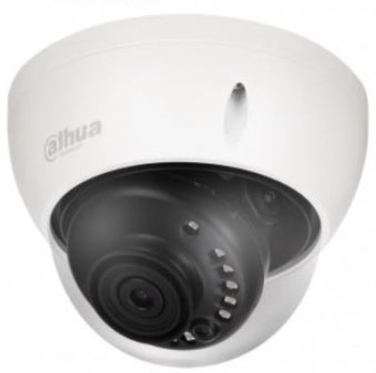

HDBW1200EN-0280B-S5 security camera Dome Indoor & outdoor
1920 x 1080 pixels Ceiling
Model HDBW1200EN-0280B-S5EAN 6939554989322
44 specifications
- ConnectivityWired
- TypeDome
- Weight310 g
- ColourBlack, White
- Placement supportedIndoor & outdoor
- Minimum illumination0 lx
Overview
- Connectivity
- Wired
- Type
- Dome
- Weight
- 310 g
- Colour
- Black, White
- Placement supported
- Indoor & outdoor
- Minimum illumination
- 0 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HDBW1200EN-0280B-S5
- Part number
- HDBW1200EN-0280B-S5
- EAN / UPC
- 6939554989322
- Also known as
- Dahua Technology HDBW1200EN-0280B-S5 security camera Dome Indoor & outdoor 1920 x 1080 pixels Ceiling
Specifications
44 specifications in 13 groups
Performance
| Specification | Value |
|---|---|
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | Black, White |
| Housing material | Aluminium |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Field of view (FOV) angle | 115° |
| White balance | Auto, Manual |
| Camera shutter speed | 1/30~1/100000 s |
| Adjustment shutter speed | Auto/Manual |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Focal length range | 2.2 mm |
| Maximum aperture number | 2 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 24 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Frame rate | 30 fps |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Smart IR | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 2.8 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 81 mm |
| Diameter | 11 cm |
| Weight | 310 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 410 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
