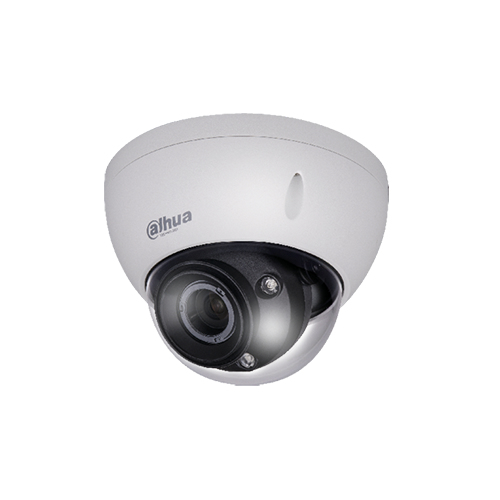

Dahua Technology Pro HDABW3231EZ security camera Dome CCTV security camera Indoor & outdoor

Dahua Technology Pro HDABW3231EZ security camera Dome CCTV security camera Indoor & outdoor

1920 x 1080 pixels Ceiling

Model HDABW3231EZ

63 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight900 g
  • ColourWhite
  • Form factorDome
  • Minimum illumination0.005 lx
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
900 g
Colour
White
Form factor
Dome
Minimum illumination
0.005 lx
Brand
Dahua Technology
Model
HDABW3231EZ
Part number
HDABW3231EZ
Also known as
Dahua Technology Pro HDABW3231EZ security camera Dome CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling

Specifications

63 specifications in 16 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
Day/night modeYes
Alarm input/outputYes

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialAluminium
International Protection (IP) codeIP67
IK codeIK10

Camera

Minimum illumination0.005 lx
Angle of rotation355°
Lens viewing angle, horizontal95°
Tilt angle range0 - 65°
Pan range0 - 355°
Camera shutter speed1 - 1/30000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Number of lenses1
Focal length range2.7 - 12 mm
Maximum aperture number1.4
Closest focusing distance0.3 m

Night vision

Night visionYes
Night vision distance50 m
LED typeIR
Number of illumination LEDs3

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Supported graphics resolutions1920 x 1080 (HD 1080)
Supported video modes1080p
Frame rate25 fps
Noise reductionYes
3D NR (Noise Reduction)Yes
Automatic gain controlYes
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Smart IRYes

Audio

Audio input channels1.0 channels
Signal-to-Noise Ratio (SNR)65 dB

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

BNC output ports1
InterfaceBNC

Power

Power source typeAC, DC
AC input voltage24 V
Power consumption (max)21.5 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Height117.9 mm
Diameter15.9 cm
Weight900 g

Packaging data

Package weight1.2 kg

Packaging content

Number of cameras1
