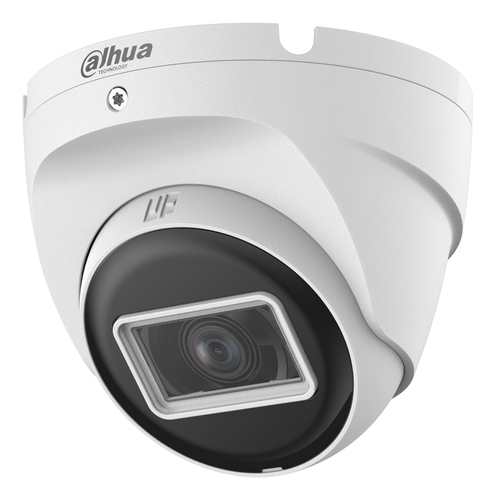

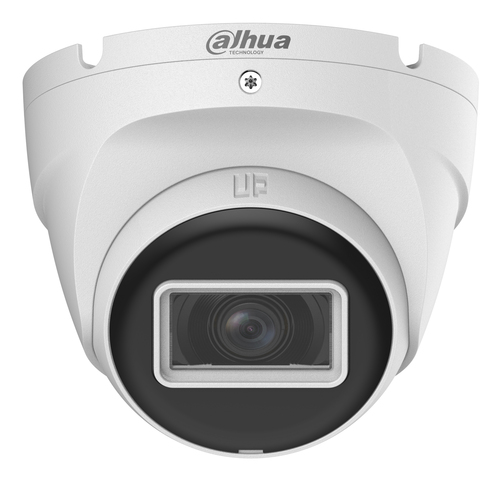

HAC-T2A21-U-0280B security camera Turret CCTV security camera Indoor & outdoor
1920 x 1080 pixels Ceiling/Wall/Pole
Model HAC-T2A21-U-0280BEAN 6923172588494
62 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight270 g
- ColourWhite
- Form factorTurret
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 270 g
- Colour
- White
- Form factor
- Turret
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HAC-T2A21-U-0280B
- Part number
- HAC-T2A21-U-0280B
- EAN / UPC
- 6923172588494
- Also known as
- Dahua Technology HAC-T2A21-U-0280B security camera Turret CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/Wall/Pole
Specifications
62 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Dynamic range | 65 dB |
Design
| Specification | Value |
|---|---|
| Form factor | Turret |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.002 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 100° |
| Lens viewing angle, vertical | 54° |
| Lens viewing angle, diagonal | 117° |
| Tilt angle range | 0 - 78° |
| Pan range | 0 - 360° |
| White balance | Auto |
| Camera shutter type | Electronic |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Detect distance | 44.7 m |
| Observe distance | 17.9 m |
| Recognize distance | 8.9 m |
| Identify distance | 4.5 m |
| Maximum aperture number | 2 |
| Closest focusing distance | 0.5 m |
| Fixed focal length | 2.8 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 2 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Frame rate | 30 fps |
| NTSC resolutions | 1920 x 1080, 960 x 576, 960 x 480 |
| PAL resolutions | 1920 x 1080, 960 x 576, 960 x 480 |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction |
| Gain control type | Auto |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Smart IR | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 2.8 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 77.9 mm |
| Diameter | 9.4 cm |
| Weight | 270 g |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 330 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Manual | Yes |
