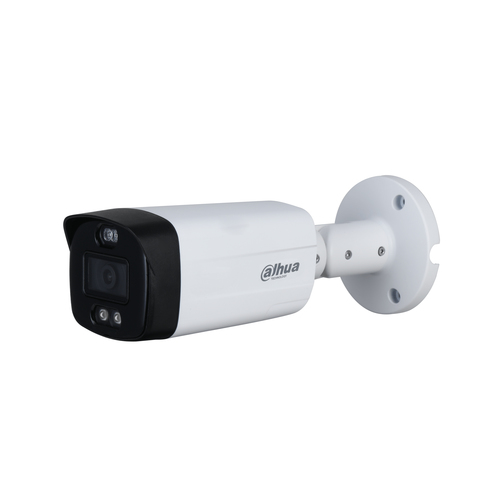

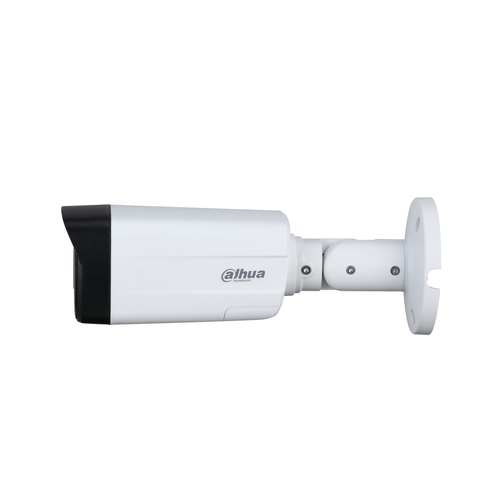

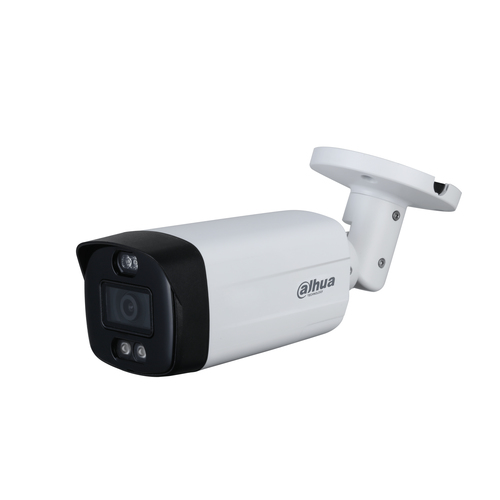

HAC-ME1809TH-A-PV security camera Bullet CCTV security camera Indoor & outdoor
3840 x 2160 pixels Ceiling/wall
Model HAC-ME1809TH-A-PV
60 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight440 g
- ColourWhite
- Form factorBullet
- Minimum illumination0.005 lx
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 440 g
- Colour
- White
- Form factor
- Bullet
- Minimum illumination
- 0.005 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HAC-ME1809TH-A-PV
- Part number
- HAC-ME1809TH-A-PV
- Also known as
- Dahua Technology HAC-ME1809TH-A-PV security camera Bullet CCTV security camera Indoor & outdoor 3840 x 2160 pixels Ceiling/wall
Specifications
60 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Built-in light | Yes |
| Certification | CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014) FCC, UL (UL60950-1+CAN/CSA C22.2 No.60950-1) IEC 62368-1:2014 |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Metal, Plastic |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.005 lx |
| Angle of rotation | 360° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter speed | 1/3 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Maximum aperture number | 1.6 |
| Closest focusing distance | 2.2 m |
| Fixed focal length | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 40 m |
| Number of illumination LEDs | 2 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 2560 x 1440, 3840 x 2160 |
| Frame rate | 30 fps |
| Analog signal format system | NTSC, PAL |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Security
| Specification | Value |
|---|---|
| Alarm output channels | 1 |
| Built-in siren | Yes |
| Mirror | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 7.7 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90.7 mm |
| Depth | 90.7 mm |
| Length | 240.7 mm |
| Weight | 440 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 700 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
