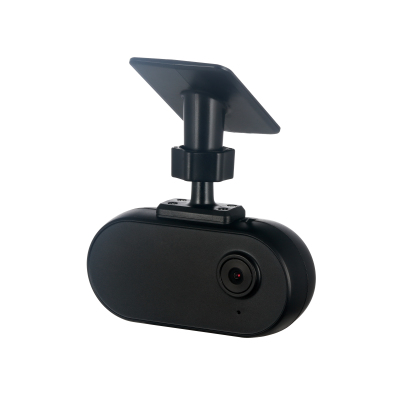

HAC-HM3100L-F security camera Box IP security camera
1280 x 720 pixels Ceiling
Model HAC-HM3100L-F
47 specifications
- ConnectivityWired
- TypeIP security camera
- Weight85 g
- ColourBlack
- Form factorBox
- Minimum illumination0.02 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 85 g
- Colour
- Black
- Form factor
- Box
- Minimum illumination
- 0.02 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HAC-HM3100L-F
- Part number
- HAC-HM3100L-F
- Also known as
- Dahua Technology HAC-HM3100L-F security camera Box IP security camera 1280 x 720 pixels Ceiling
Specifications
47 specifications in 12 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| Certification | CE FCC ANSI |
Design
| Specification | Value |
|---|---|
| Form factor | Box |
| Mounting type | Ceiling |
| Product colour | Black |
| Housing material | Plastic |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.02 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 116° |
| Tilt angle range | 0 - 30° |
| Pan range | 0 - 30° |
| White balance | Auto, Manual |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/30~1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 1280 x 720 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Maximum aperture number | 2 |
| Fixed focal length | 2.8 mm |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1280 x 720 pixels |
| Total megapixels | 1.3 MP |
| Frame rate | 60 fps |
| Noise reduction | Yes |
| Noise reduction technology | Ultra 2D noise reduction |
| Gain control type | Auto |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
| Built-in microphone | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Microphone in | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 0.9 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 115.8 mm |
| Depth | 27.4 mm |
| Height | 99.5 mm |
| Weight | 85 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
