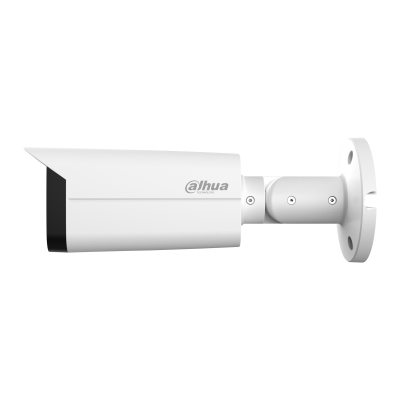

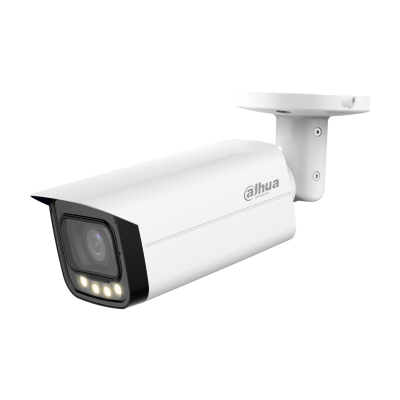

Dahua Technology DH-HAC HAC-HFW2509TU-A-LED security camera Bullet IP security camera Indoor & outdoor
Dahua Technology

DH-HAC HAC-HFW2509TU-A-LED security camera Bullet IP security camera Indoor & outdoor

2880 x 1620 pixels Ceiling/Wall/Pole

Model HAC-HFW2509TU-A-LED

67 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight780 g
  • ColourWhite
  • Form factorBullet
  • Field of view (FOV) angle131°
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
780 g
Colour
White
Form factor
Bullet
Field of view (FOV) angle
131°
Brand
Dahua Technology
Model
HAC-HFW2509TU-A-LED
Part number
HAC-HFW2509TU-A-LED
Also known as
Dahua Technology DH-HAC HAC-HFW2509TU-A-LED security camera Bullet IP security camera Indoor & outdoor 2880 x 1620 pixels Ceiling/Wall/Pole

Specifications

67 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Built-in lightYes
CertificationCE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Design

Form factorBullet
Mounting typeCeiling/Wall/Pole
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Field of view (FOV) angle131°
Lens viewing angle, horizontal111°
Lens viewing angle, vertical57°
Lens viewing angle, diagonal131°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto
Camera shutter typeElectronic
Camera shutter speed1/4 - 1/100000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Effective sensor resolution2880 pixels
Number of effective pixels (H x V)2880 x 1620 pixels

Lens system

Number of lenses1
Zoom capabilityYes
Digital zoom4x
Detect distance66 m
Observe distance26.4 m
Recognize distance13.2 m
Lens diameter2.8 mm
Focal length range2.8 mm
Identify distance6.6 m
Maximum aperture number1
Closest focusing distance1.5 m

Night vision

Night visionNo

Video

Maximum resolution2880 x 1620 pixels
Total megapixels5 MP
Frame rate25 fps
NTSC resolutions2880 x 1620 pixels
PAL resolutions2880 x 1620 pixels
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes

Audio

Audio input channels1.0 channels

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

BNC output ports1

Security

MirrorYes

Power

Power source typeDC
Power consumption (max)10.7 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Diameter9.04 cm
Length244.1 mm
Weight780 g

Packaging data

Package weight1.04 kg

Packaging content

Number of cameras1
