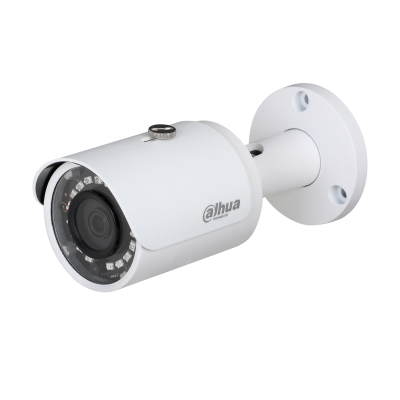

Pro HAC-HFW2401SP-0360B security camera Bullet Indoor & outdoor
2560 x 1440 pixels Ceiling/wall
Model HAC-HFW2401SP-0360B
59 specifications
- ConnectivityWired
- TypeBullet
- Weight350 g
- ColourBlack, White
- Placement supportedIndoor & outdoor
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- Bullet
- Weight
- 350 g
- Colour
- Black, White
- Placement supported
- Indoor & outdoor
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HAC-HFW2401SP-0360B
- Part number
- HAC-HFW2401SP-0360B
- Also known as
- Dahua Technology Pro HAC-HFW2401SP-0360B security camera Bullet Indoor & outdoor 2560 x 1440 pixels Ceiling/wall
Specifications
59 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Maximum operating distance | 30 m |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Languages support | Multi |
| Certification | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/wall |
| Product colour | Black, White |
| Housing material | Aluminium |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Angle of rotation | 79° |
| Lens viewing angle, horizontal | 99.7° |
| Lens viewing angle, vertical | 48.6° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Effective sensor resolution (thermal module) | 2688 x 1520 pixels |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 2688 x 1520 pixels |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 3.6 - 6 mm |
| Minimum aperture number | 1.5 |
| Closest focusing distance | 1.5 m |
| Detect distance (tele) | 80 m |
| Detect distance (wide) | 32 m |
| Fixed focal length | 3.6 mm |
| Observe distance (wide) | 16 m |
| Recognize distance (wide) | 8 m |
Night vision
| Specification | Value |
|---|---|
| Number of illumination LEDs | 18 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2560 x 1440 pixels |
| Total megapixels | 4 MP |
| Supported graphics resolutions | 2560 x 1440 |
| Supported video modes | 720p, 1080p |
| Noise reduction | Yes |
| Noise reduction technology | Ultra 2D noise reduction, Ultra 3D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 4.9 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 164.7 mm |
| Height | 71.6 mm |
| Weight | 350 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 440 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
