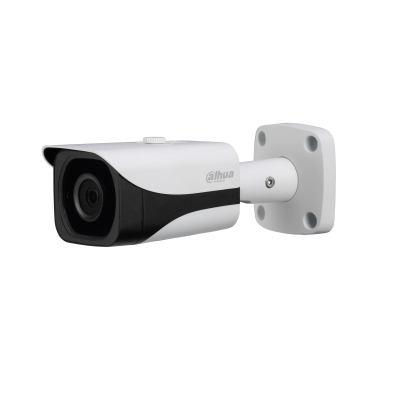

Pro HAC-HFW2401E security camera Bullet IP security camera Outdoor
2688 x 1520 pixels Wall
Model HAC-HFW2401E
47 specifications
- TypeIP security camera
- Weight400 g
- ColourWhite
- Form factorBullet
- Field of view (FOV) angle79°
- Sensor typeCMOS
Overview
- Type
- IP security camera
- Weight
- 400 g
- Colour
- White
- Form factor
- Bullet
- Field of view (FOV) angle
- 79°
- Sensor type
- CMOS
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HAC-HFW2401E
- Part number
- HAC-HFW2401E
- Also known as
- Dahua Technology Pro HAC-HFW2401E security camera Bullet IP security camera Outdoor 2688 x 1520 pixels Wall
Specifications
47 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| PTZ control | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Certification | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Wall |
| Product colour | White |
Camera
| Specification | Value |
|---|---|
| Field of view (FOV) angle | 79° |
| Angle of rotation | 360° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter speed | 1/4s - 1/100000 |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Maximum aperture number | 1.5 |
| Closest focusing distance | 1.5 m |
| Fixed focal length | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 40 m |
| Number of illumination LEDs | 2 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2688 x 1520 pixels |
| Total megapixels | 4.1 MP |
| Supported video modes | 720p, 1080p |
| Frame rate | 30 fps |
| Noise reduction | Yes |
| Noise reduction technology | Ultra 2D noise reduction, Ultra 3D noise reduction |
| Gain control type | Auto |
| Automatic gain control | Yes |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 5.9 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 70 mm |
| Height | 70 mm |
| Weight | 400 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 510 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
