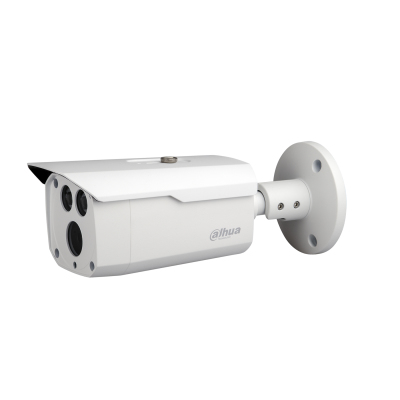

Pro HAC-HFW2401DP-0600B security camera Bullet CCTV security camera Indoor & outdoor
2560 x 1440 pixels Ceiling/wall
Model HAC-HFW2401DP-0600B
63 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight640 g
- ColourWhite
- Form factorBullet
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 640 g
- Colour
- White
- Form factor
- Bullet
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HAC-HFW2401DP-0600B
- Part number
- HAC-HFW2401DP-0600B
- Also known as
- Dahua Technology Pro HAC-HFW2401DP-0600B security camera Bullet CCTV security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/wall
Specifications
63 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Maximum operating distance | 80 m |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Aluminium |
| Protection features | Vandal proof |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.01 lx |
| Field of view (FOV) angle | 79° |
| Lens viewing angle, horizontal | 48.6° |
| White balance | Auto, Manual |
| Camera shutter speed | 1/3 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Effective sensor resolution (thermal module) | 2688 x 1520 pixels |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Aperture number (thermal module) | 1.5 |
| Detect distance (tele) | 120 m |
| Detect distance (wide) | 80 m |
| Fixed focal length | 3.6 mm |
| Identify distance (tele) | 12 m |
| Identify distance (wide) | 8 m |
| Observe distance (wide) | 48 m |
| Recognize distance (tele) | 24 m |
| Recognize distance (wide) | 16 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Number of illumination LEDs | 2 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2560 x 1440 pixels |
| Total megapixels | 4 MP |
| Frame rate | 25 fps |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction, Ultra 2D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 6 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90.4 mm |
| Depth | 90.3 mm |
| Height | 241.8 mm |
| Weight | 640 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 770 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
