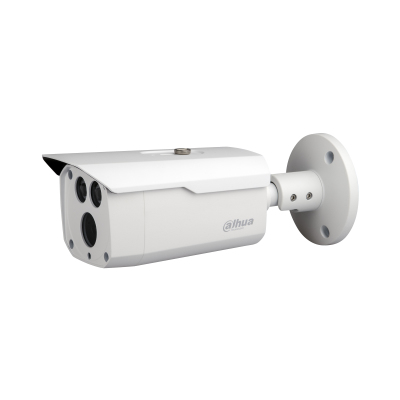

Dahua Technology Lite Plus HAC-HFW1801D Bullet CCTV security camera Indoor & outdoor
Dahua Technology

Lite Plus HAC-HFW1801D Bullet CCTV security camera Indoor & outdoor

3840 x 2160 pixels Ceiling/Wall/Pole

Model HAC-HFW1801DPart no. DH-HAC-HFW1801DN-0360BEAN 6939554968372

66 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight600 g
  • ColourWhite
  • Form factorBullet
  • Minimum illumination0 lx
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
600 g
Colour
White
Form factor
Bullet
Minimum illumination
0 lx
Brand
Dahua Technology
Model
HAC-HFW1801D
Part number
DH-HAC-HFW1801DN-0360B
EAN / UPC
6939554968372
Also known as
Dahua Technology Lite Plus HAC-HFW1801D Bullet CCTV security camera Indoor & outdoor 3840 x 2160 pixels Ceiling/Wall/Pole

Specifications

66 specifications in 17 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Design

Form factorBullet
Mounting typeCeiling/Wall/Pole
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal87°
Lens viewing angle, vertical47°
Lens viewing angle, diagonal104°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual
Camera shutter typeElectronic
Camera shutter speedPAL: 1/3s-1/100000s, NTSC: 1/4s-1/100000s
Number of Privacy masking areas8

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Number of effective pixels (H x V)3840 x 2160 pixels

Lens system

Digital zoom4x
Detect distance107 m
Observe distance43 m
Recognize distance21 m
Focal length range3.6 mm
Identify distance11 m
Maximum aperture number2

Night vision

Night visionYes
Night vision distance80 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution3840 x 2160 pixels
Total megapixels8 MP
Supported graphics resolutions960 x 480, 960 x 576, 2560 x 1440, 2592 x 1944, 3840 x 2160
Frame rate30 fps
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Smart IRYes

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

BNC output ports1

Security

MirrorYes

Power

Power source typeDC
Power consumption (max)6.5 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width241.8 mm
Depth90.4 mm
Height90.4 mm
Weight600 g

Packaging data

Package weight760 g

Packaging content

Number of cameras1

Technical details

IrisYes
