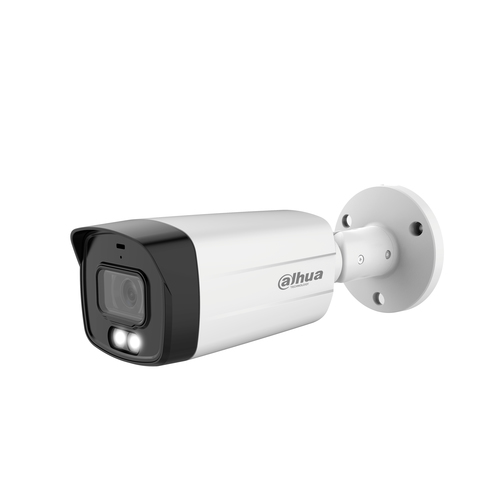

Lite HAC-HFW1509TM-A-LED-0360B-S2 security camera Bullet IP security camera Outdoor
2880 x 1620 pixels Ceiling/Pole
Model HAC-HFW1509TM-A-LED-0360B-S2EAN 6923172524553
63 specifications
- ConnectivityWired
- TypeIP security camera
- Weight630 g
- ColourWhite
- Form factorBullet
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 630 g
- Colour
- White
- Form factor
- Bullet
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HAC-HFW1509TM-A-LED-0360B-S2
- Part number
- HAC-HFW1509TM-A-LED-0360B-S2
- EAN / UPC
- 6923172524553
- Also known as
- Dahua Technology Lite HAC-HFW1509TM-A-LED-0360B-S2 security camera Bullet IP security camera Outdoor 2880 x 1620 pixels Ceiling/Pole
Specifications
63 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/Pole |
| Product colour | White |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 88° |
| Lens viewing angle, vertical | 46° |
| Lens viewing angle, diagonal | 104° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| White balance | Auto |
| Camera shutter type | Electronic |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 2880 x 1620 pixels |
Lens system
| Specification | Value |
|---|---|
| Detect distance | 80 m |
| Observe distance | 32 m |
| Recognize distance | 16 m |
| Identify distance | 8 m |
| Maximum aperture number | 1 |
| Closest focusing distance | 2.3 m |
| Fixed focal length | 3.6 mm |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2880 x 1620 pixels |
| Total megapixels | 5 MP |
| Supported graphics resolutions | 960 x 480, 960 x 576, 1920 x 1080 (HD 1080), 2560 x 1440, 2880 x 1620 |
| Supported video modes | 1620p, 480p, 576p, 1080p, 1440p |
| Frame rate | 30 fps |
| Analog signal format system | NTSC, PAL |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
Audio
| Specification | Value |
|---|---|
| Audio input channels | 1.0 channels |
| Signal-to-Noise Ratio (SNR) | 65 dB |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Mirror | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 6.4 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90.7 mm |
| Height | 90.4 mm |
| Length | 240.7 mm |
| Weight | 630 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 850 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
