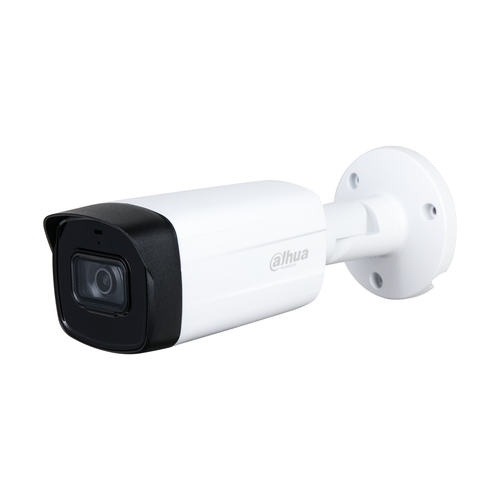

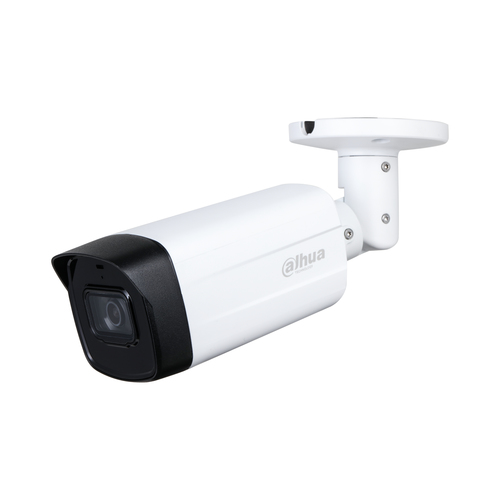

DH-HAC HAC-HFW1231TM-I8-A-0360B security camera Bullet CCTV security camera Indoor & outdoor
1920 x 1080 pixels Ceiling/Wall/Pole
Model HAC-HFW1231TM-I8-A-0360BEAN 6923172506719
62 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight650 g
- ColourWhite
- Form factorBullet
- Minimum illumination0.002 lx
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 650 g
- Colour
- White
- Form factor
- Bullet
- Minimum illumination
- 0.002 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HAC-HFW1231TM-I8-A-0360B
- Part number
- HAC-HFW1231TM-I8-A-0360B
- EAN / UPC
- 6923172506719
- Also known as
- Dahua Technology DH-HAC HAC-HFW1231TM-I8-A-0360B security camera Bullet CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/Wall/Pole
Specifications
62 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Dynamic range | 65 dB |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
| Housing material | Metal |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.002 lx |
| Angle of rotation | 360° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/25 s–1/100,000 |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Effective sensor resolution | 2 pixels |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 1920 x 1080 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 4 |
| Detect distance | 110.3 m |
| Observe distance | 44.1 m |
| Recognize distance | 22.1 m |
| Identify distance | 11 m |
| Maximum aperture number | 1.6 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Supported graphics resolutions | 960 x 480, 960 x 576, 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash) |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Security
| Specification | Value |
|---|---|
| Mirror | Yes |
| Video motion detection | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 240.7 mm |
| Depth | 90.7 mm |
| Height | 90.4 mm |
| Weight | 650 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
