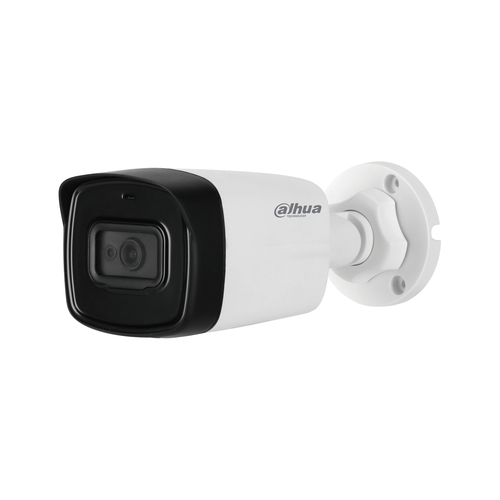

Lite HAC-HFW1230TL Bullet CCTV security camera Outdoor
1920 x 1080 pixels Ceiling/wall
Model HAC-HFW1230TLPart no. HFW1230TL-28EAN 6939554956553
64 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight220 g
- ColourWhite
- Form factorBullet
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 220 g
- Colour
- White
- Form factor
- Bullet
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HAC-HFW1230TL
- Part number
- HFW1230TL-28
- EAN / UPC
- 6939554956553
- Also known as
- Dahua Technology Lite HAC-HFW1230TL Bullet CCTV security camera Outdoor 1920 x 1080 pixels Ceiling/wall
Specifications
64 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Certification | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC 15 B, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Plastic |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 106° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/25 (1/30) - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Maximum aperture number | 1.6 |
| Closest focusing distance | 0.6 m |
| Detect distance (wide) | 39 m |
| Fixed focal length | 2.8 mm |
| Identify distance (wide) | 4 m |
| Observe distance (wide) | 15 m |
| Recognize distance (wide) | 8 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 40 m |
| LED type | IR |
| Number of illumination LEDs | 2 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Supported video modes | 720p, 1080p |
| Frame rate | 30 fps |
| Analog signal format system | NTSC, PAL |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Gain control type | Auto |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 3 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80.2 mm |
| Depth | 76.2 mm |
| Length | 198.9 mm |
| Weight | 220 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 360 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
