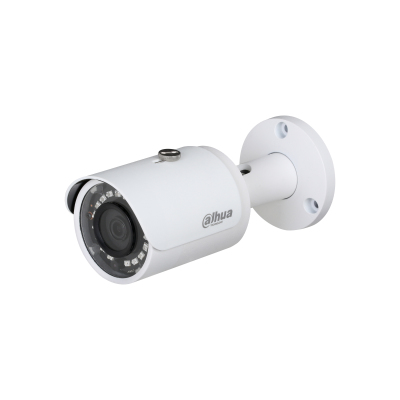

Lite HAC-HFW1220SP-0360B security camera Bullet IP security camera Indoor & outdoor
1920 x 1080 pixels Ceiling/wall
Model HAC-HFW1220SP-0360B
50 specifications
- ConnectivityWired
- TypeIP security camera
- Weight300 g
- ColourWhite
- Form factorBullet
- Minimum illumination0.02 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 300 g
- Colour
- White
- Form factor
- Bullet
- Minimum illumination
- 0.02 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HAC-HFW1220SP-0360B
- Part number
- HAC-HFW1220SP-0360B
- Also known as
- Dahua Technology Lite HAC-HFW1220SP-0360B security camera Bullet IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall
Specifications
50 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Day/night mode | Yes |
| Certification | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Aluminium |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.02 lx |
| Field of view (FOV) angle | 80.8° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter speed | 1/25 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Detect distance | 57 m |
| Observe distance | 23 m |
| Recognize distance | 11 m |
| Closest focusing distance | 0.8 m |
| Fixed focal length | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 1080p |
| Noise reduction | Yes |
| Noise reduction technology | Ultra 2D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 156.3 mm |
| Depth | 70 mm |
| Height | 70 mm |
| Weight | 300 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
