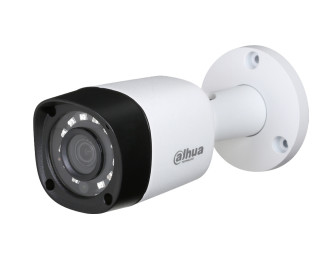

Dahua Technology Lite HAC-HFW1220RMN-0360B Bullet Indoor & outdoor Wall/Pole
Model HAC-HFW1220RMN-0360BPart no. DH-HAC-HFW1220RMN-0360B
50 specifications
- ConnectivityWired
- TypeBullet
- Weight300 g
- ColourWhite
- Placement supportedIndoor & outdoor
- Minimum illumination0.02 lx
Overview
- Connectivity
- Wired
- Type
- Bullet
- Weight
- 300 g
- Colour
- White
- Placement supported
- Indoor & outdoor
- Minimum illumination
- 0.02 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HAC-HFW1220RMN-0360B
- Part number
- DH-HAC-HFW1220RMN-0360B
- Also known as
- Dahua Technology Lite HAC-HFW1220RMN-0360B Bullet Indoor & outdoor Wall/Pole
Specifications
50 specifications in 13 groups
Performance
| Specification | Value |
|---|---|
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Plug and Play | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Wall/Pole |
| Product colour | White |
| Housing material | Aluminium, Metal |
| Protection features | Waterproof |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.02 lx |
| Field of view (FOV) angle | 80.8° |
| Angle of rotation | 360° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter type | Electronic |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 1936 x 1097 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Fixed focal length | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
| Number of illumination LEDs | 12 |
Video
| Specification | Value |
|---|---|
| Total megapixels | 2 MP |
| Supported video modes | 720p, 1080p |
| Frame rate | 60 fps |
| Analog signal format system | NTSC, PAL |
| Noise reduction | Yes |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 2.8 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 70 mm |
| Length | 156.3 mm |
| Weight | 300 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
Compare Dahua Technology Lite HAC-HFW1220RMN-0360B Bullet Indoor & outdoor Wall/Pole
Compare any products- Dahua Technology Lite HAC-HFW1220RMN-0360B Bullet Indoor & outdoor Wall/Pole vsDahua Technology DH-HPT1339DD-STW-3E2 security camera Spherical IP security camera IndoorCompare specs

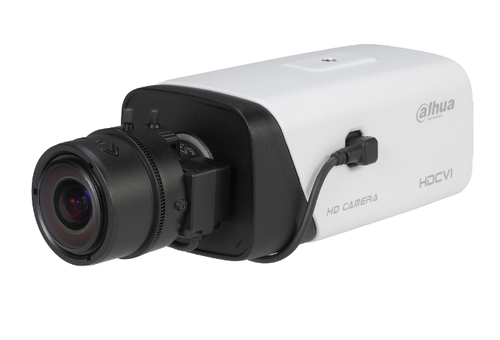

- Dahua Technology Lite HAC-HFW1220RMN-0360B Bullet Indoor & outdoor Wall/Pole vsDahua Technology Ultra DH-HAC-HF3231E Box CCTV security camera Indoor & outdoorCompare specs
- Dahua Technology Lite HAC-HFW1220RMN-0360B Bullet Indoor & outdoor Wall/Pole vsDahua Technology Lite HAC-HFW1220SP-0360B security camera Bullet IP security camera Indoor & outdoorCompare specs
- Dahua Technology Lite HAC-HFW1220RMN-0360B Bullet Indoor & outdoor Wall/Pole vsDahua Technology HAC-HMW3200L-FR security camera IP security cameraCompare specs
- Dahua Technology Lite HAC-HFW1220RMN-0360B Bullet Indoor & outdoor Wall/Pole vsTP-Link VIGI C230I(2.8mm)Compare specs
- Dahua Technology Lite HAC-HFW1220RMN-0360B Bullet Indoor & outdoor Wall/Pole vsImou Turret SECompare specs

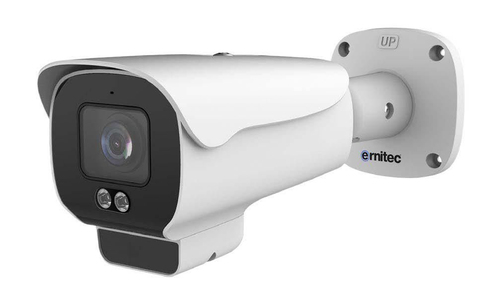

- Dahua Technology Lite HAC-HFW1220RMN-0360B Bullet Indoor & outdoor Wall/Pole vsErnitec 0070-08214 security camera IP security camera Indoor & outdoorCompare specs

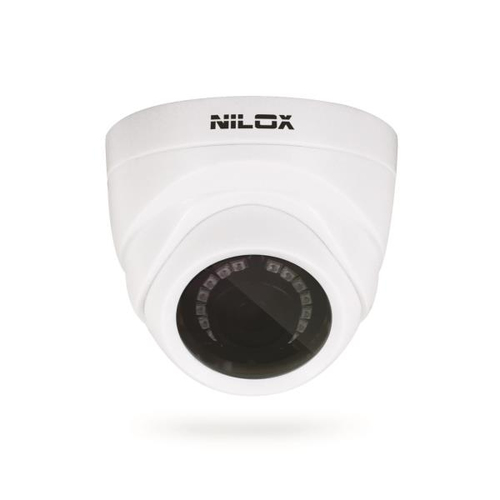

- Dahua Technology Lite HAC-HFW1220RMN-0360B Bullet Indoor & outdoor Wall/Pole vsNilox 31NXIPDM2M001 security camera Dome IP security camera IndoorCompare specs
