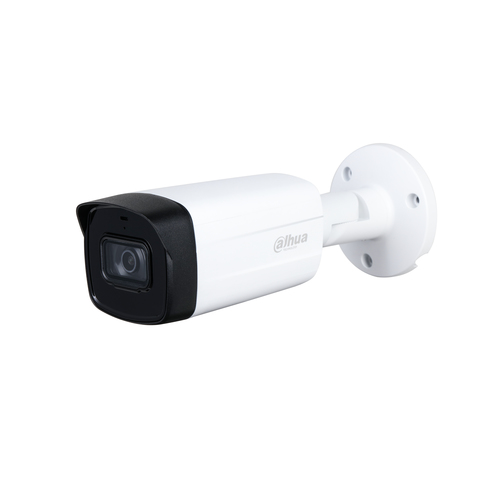

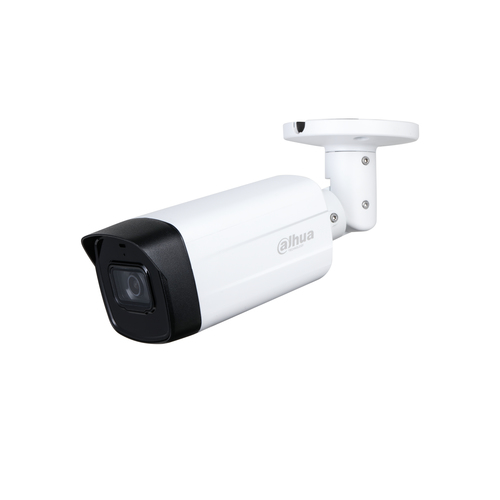

Lite HAC-HFW1200TH-I8-0360B security camera Bullet IP security camera Outdoor
1920 x 1080 pixels Wall/Pole
Model HAC-HFW1200TH-I8-0360BEAN 6939554990052
63 specifications
- ConnectivityWired
- TypeIP security camera
- Weight410 g
- ColourWhite
- Form factorBullet
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 410 g
- Colour
- White
- Form factor
- Bullet
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HAC-HFW1200TH-I8-0360B
- Part number
- HAC-HFW1200TH-I8-0360B
- EAN / UPC
- 6939554990052
- Also known as
- Dahua Technology Lite HAC-HFW1200TH-I8-0360B security camera Bullet IP security camera Outdoor 1920 x 1080 pixels Wall/Pole
Specifications
63 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Wall/Pole |
| Product colour | White |
| Housing material | Plastic |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Field of view (FOV) angle | 100° |
| Angle of rotation | 360° |
| Tilt angle range | 0 - 180° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter type | Electronic |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 1920 x 1080 pixels |
Lens system
| Specification | Value |
|---|---|
| Detect distance | 49.7 m |
| Observe distance | 19.9 m |
| Recognize distance | 9.9 m |
| Identify distance | 5 m |
| Maximum aperture number | 1.9 |
| Closest focusing distance | 0.8 m |
| Fixed focal length | 3.6 mm |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Supported graphics resolutions | 960 x 480, 960 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 1080p |
| Frame rate | 60 fps |
| Analog signal format system | NTSC, PAL |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Mirror | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 4.9 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90.7 mm |
| Height | 90.4 mm |
| Length | 240.7 mm |
| Weight | 410 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 620 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Manual | Yes |
