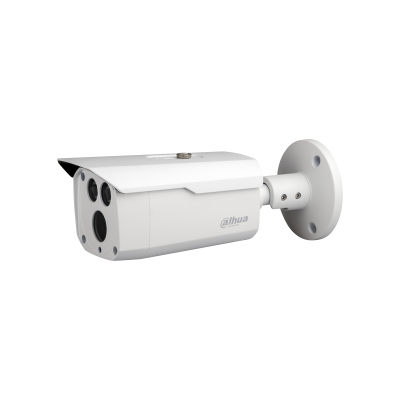

Lite HAC-HFW1100DP-0600B security camera Bullet Indoor & outdoor Wall
Model HAC-HFW1100DP-0600B
53 specifications
- ConnectivityWired
- TypeBullet
- ColourWhite
- Placement supportedIndoor & outdoor
- Camera pan controlYes
- Sensor typeCMOS
Overview
- Connectivity
- Wired
- Type
- Bullet
- Colour
- White
- Placement supported
- Indoor & outdoor
- Camera pan control
- Yes
- Sensor type
- CMOS
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HAC-HFW1100DP-0600B
- Part number
- HAC-HFW1100DP-0600B
- Also known as
- Dahua Technology Lite HAC-HFW1100DP-0600B security camera Bullet Indoor & outdoor Wall
Specifications
53 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Maximum operating distance | 80 m |
| Certification | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Wall |
| Product colour | White |
| Housing material | Aluminium |
| Protection features | Vandal proof |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Field of view (FOV) angle | 72.3° |
| Angle of rotation | 360° |
| Tilt angle range | 0 - 87° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter speed | 1/3 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Effective sensor resolution (thermal module) | 1280 x 720 pixels |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Aperture number (thermal module) | 2 |
| Detect distance (tele) | 120 m |
| Detect distance (wide) | 64 m |
| Fixed focal length | 3.6 mm |
| Identify distance (wide) | 6 m |
| Observe distance (wide) | 26 m |
| Recognize distance (wide) | 8 m |
Night vision
| Specification | Value |
|---|---|
| Number of illumination LEDs | 2 |
Video
| Specification | Value |
|---|---|
| Supported video modes | 720p |
| Frame rate | 30 fps |
| Noise reduction | Yes |
| Noise reduction technology | Ultra 2D noise reduction |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 4.8 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
