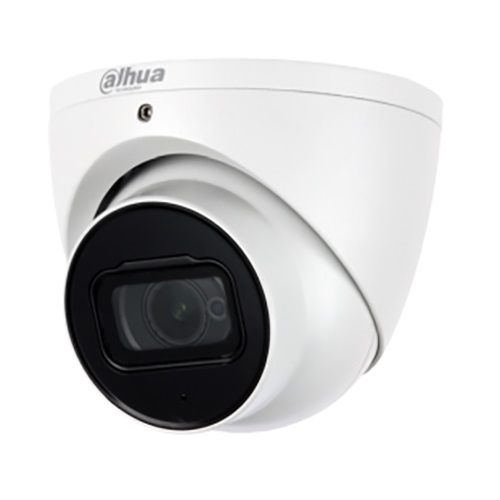

Pro HAC-HDW2802TN-A security camera Turret IP security camera Indoor & outdoor
3840 x 2160 pixels Ceiling
Model HAC-HDW2802TN-A
49 specifications
- ConnectivityWired
- TypeIP security camera
- Weight500 g
- ColourWhite
- Form factorTurret
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 500 g
- Colour
- White
- Form factor
- Turret
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HAC-HDW2802TN-A
- Part number
- HAC-HDW2802TN-A
- Also known as
- Dahua Technology Pro HAC-HDW2802TN-A security camera Turret IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling
Specifications
49 specifications in 13 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Maximum operating distance | 50 m |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Remote viewing | Yes |
| Plug and Play | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Turret |
| Mounting type | Ceiling |
| Product colour | White |
| Housing material | Aluminium |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.005 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 87° |
| Tilt angle range | 0 - 70° |
| Pan range | 0 - 360° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2 mm (1 / 2") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Detect distance | 84 m |
| Observe distance | 34 m |
| Recognize distance | 17 m |
| Auto focus | Yes |
| Identify distance | 8 m |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Total megapixels | 8 MP |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 8 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 99.2 mm |
| Diameter | 10.6 cm |
| Weight | 500 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 620 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
