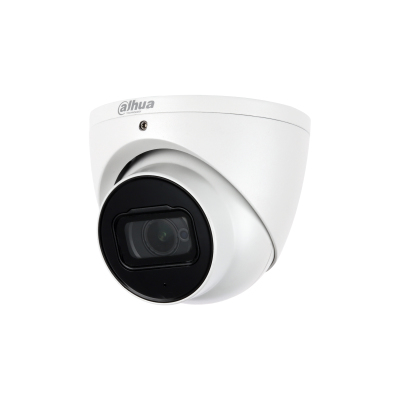

Dahua Technology Pro HAC-HDW2249T-A Turret IP security camera Indoor & outdoor
Dahua Technology

Pro HAC-HDW2249T-A Turret IP security camera Indoor & outdoor

1920 x 1080 pixels Wall/Pole

Model HAC-HDW2249T-APart no. DH-HAC-HDW2249TP-A-NI-0600B

66 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight480 g
  • ColourWhite
  • Form factorTurret
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
480 g
Colour
White
Form factor
Turret
Camera pan control
Yes
Brand
Dahua Technology
Model
HAC-HDW2249T-A
Part number
DH-HAC-HDW2249TP-A-NI-0600B
Also known as
Dahua Technology Pro HAC-HDW2249T-A Turret IP security camera Indoor & outdoor 1920 x 1080 pixels Wall/Pole

Specifications

66 specifications in 14 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Dynamic range120 dB
Languages supportMulti
CertificationCE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Design

Form factorTurret
Mounting typeWall/Pole
Product colourWhite
Housing materialAluminium
Protection featuresWater resistant, Waterproof
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.001 lx
Angle of rotation360°
Lens viewing angle, horizontal89.5°
Tilt angle range0 - 70°
Pan range0 - 360°
White balanceAuto, Manual
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Number of lenses1
Detect distance53 m
Observe distance21 m
Recognize distance11 m
Focal length range3.6 mm
Auto focusYes
FocusManual
Identify distance5 m
Maximum aperture number1
Closest focusing distance1.6 m

Night vision

Night visionNo

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Supported graphics resolutions1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate60 fps
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes
Smart IRNo

Audio

Audio input channels1.0 channels
Signal-to-Noise Ratio (SNR)65 dB
Built-in microphoneYes

Ports & interfaces

BNC output ports1

Power

Power source typeDC
Power consumption (max)2.4 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Width99.2 mm
Diameter10.6 cm
Weight480 g

Packaging data

Package weight650 g

Packaging content

Number of cameras1
