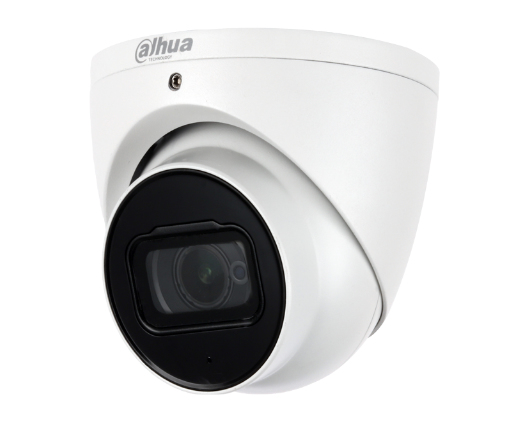

HAC-HDW2241TP-A Dome CCTV security camera Indoor & outdoor
1920 x 1080 pixels Ceiling
Model HAC-HDW2241TP-APart no. HAC-HDW2241TP-A-0280BEAN 6939554943621
69 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight500 g
- ColourWhite
- Form factorDome
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 500 g
- Colour
- White
- Form factor
- Dome
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HAC-HDW2241TP-A
- Part number
- HAC-HDW2241TP-A-0280B
- EAN / UPC
- 6939554943621
- Also known as
- Dahua Technology HAC-HDW2241TP-A Dome CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
Specifications
69 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Languages support | Multi |
| Certification | CE (EN55032, EN55024, EN50130-4)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| Housing material | Aluminium |
| Protection features | Dust resistant, Water resistant |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 110° |
| Tilt angle range | 0 - 78° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/4 - 1/100,000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 1920 x 1080 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Focus | Motorized/Manual |
| Maximum aperture number | 1.6 |
| Closest focusing distance | 0.5 m |
| Fixed focal length | 2.8 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 50 m |
| LED type | IR |
| Number of illumination LEDs | 2 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Supported video modes | 720p, 1080p |
| Frame rate | 30 fps |
| Analog signal format system | PAL |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Audio input channels | 1.0 channels |
| Signal-to-Noise Ratio (SNR) | 65 dB |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
| Microphone in | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 5.3 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 106 mm |
| Depth | 106 mm |
| Height | 99.2 mm |
| Weight | 500 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 620 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
