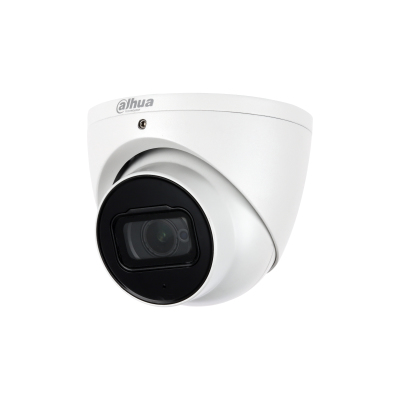

Pro HAC-HDW2241T-A IP security camera
1920 x 1080 pixels Ceiling
Model HAC-HDW2241T-APart no. DH-HAC-HDW2241T-A-2.8MM
59 specifications
- ConnectivityWired
- TypeIP security camera
- Weight500 g
- Mounting typeCeiling
- Camera pan controlYes
- Sensor typeCMOS
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 500 g
- Mounting type
- Ceiling
- Camera pan control
- Yes
- Sensor type
- CMOS
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HAC-HDW2241T-A
- Part number
- DH-HAC-HDW2241T-A-2.8MM
- Also known as
- Dahua Technology Pro HAC-HDW2241T-A IP security camera 1920 x 1080 pixels Ceiling
Specifications
59 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CE, FCC, UL |
Design
| Specification | Value |
|---|---|
| Mounting type | Ceiling |
| Housing material | Aluminium |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 86.9° |
| Tilt angle range | 0 - 78° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of effective pixels (H x V) | 1920 x 1080 pixels |
Lens system
| Specification | Value |
|---|---|
| Fixed focus | Yes |
| Focus | Motorized/Manual |
| Maximum aperture number | 1.6 |
| Detect distance (wide) | 39 m |
| Fixed focal length | 2.8 mm |
| Identify distance (wide) | 4 m |
| Observe distance (wide) | 15 m |
| Recognize distance (wide) | 8 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 50 m |
| LED type | IR |
| Number of illumination LEDs | 2 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 1080p |
| Frame rate | 60 fps |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction, Ultra 2D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Audio input channels | 1.0 channels |
| Signal-to-Noise Ratio (SNR) | 65 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 5.3 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 99.2 mm |
| Diameter | 10.6 cm |
| Weight | 500 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 620 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
