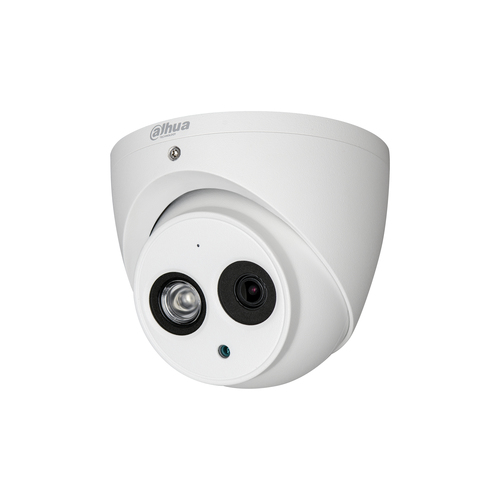

Pro HAC-HDW2221EM-A security camera Dome
1928 x 1088 pixels Ceiling
Model HAC-HDW2221EM-A
52 specifications
- ConnectivityWired
- TypeDome
- Weight440 g
- ColourWhite
- Minimum illumination0.03 lx
- Sensor typeCMOS
Overview
- Connectivity
- Wired
- Type
- Dome
- Weight
- 440 g
- Colour
- White
- Minimum illumination
- 0.03 lx
- Sensor type
- CMOS
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HAC-HDW2221EM-A
- Part number
- HAC-HDW2221EM-A
- Also known as
- Dahua Technology Pro HAC-HDW2221EM-A security camera Dome 1928 x 1088 pixels Ceiling
Specifications
52 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.03 lx |
| Field of view (FOV) angle | 90° |
| Angle of rotation | 360° |
| Tilt angle range | 0 - 78° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter speed | 1 - 1/30000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Detect distance | 40 m |
| Observe distance | 16 m |
| Recognize distance | 8 m |
| Identify distance | 4 m |
| Maximum aperture number | 2 |
| Fixed focal length | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 50 m |
| LED type | IR |
| Number of illumination LEDs | 1 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1928 x 1088 pixels |
| Total megapixels | 2.1 MP |
| Supported video modes | 720p, 1080p |
| Frame rate | 60 fps |
| Noise reduction | Yes |
| Noise reduction technology | Ultra 2D noise reduction, Ultra 3D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Microphone in | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 5.5 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 93.7 mm |
| Diameter | 10.6 cm |
| Weight | 440 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 580 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
