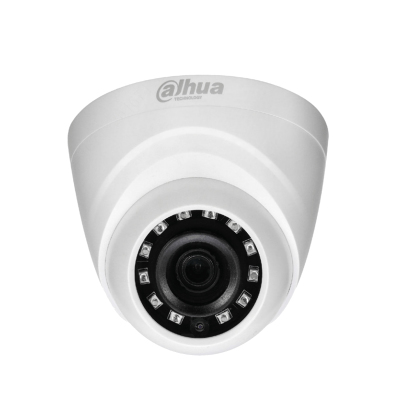

HAC-HDW1800R Dome IP security camera Outdoor
3840 x 2160 pixels Ceiling
Model HAC-HDW1800RPart no. DH-HAC-HDW1800RP 2.8MM
54 specifications
- ConnectivityWired
- TypeIP security camera
- Weight120 g
- ColourWhite
- Form factorDome
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 120 g
- Colour
- White
- Form factor
- Dome
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HAC-HDW1800R
- Part numbers
- DH-HAC-HDW1800RP 2.8MM, DH-HAC-HDW1800RP 3.6MM
- Also known as
- Dahua Technology HAC-HDW1800R Dome IP security camera Outdoor 3840 x 2160 pixels Ceiling
Specifications
54 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Certification | CE (EN55032, EN55024, EN50130-4,EN60950-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| Housing material | Metal, Plastic |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.03 lx |
| Angle of rotation | 360° |
| Tilt angle range | 0 - 78° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/25 –1/100000, 1/3 –1/100000 |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Detect distance | 20 m |
| Lens diameter | 2.8 mm |
| Focal length range | 2.8/3.6 mm |
| Maximum aperture number | 2 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 960 x 480, 960 x 576, 2560 x 1440, 2592 x 1944, 3840 x 2160 |
| Frame rate | 30 fps |
| Analog signal format system | NTSC, PAL |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Security
| Specification | Value |
|---|---|
| Mirror | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 55 °C |
| Storage temperature (T-T) | -40 - 55 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 70.2 mm |
| Diameter | 8.54 cm |
| Weight | 120 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 190 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
