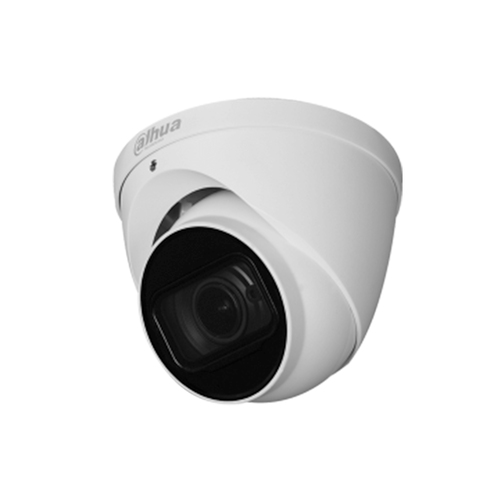

Lite HAC-HDW1500T-Z-A-POC Turret CCTV security camera Indoor & outdoor
2880 x 1620 pixels Ceiling/Wall/Pole
Model HAC-HDW1500T-Z-A-POCPart no. HAC-HDW1500T-Z-A-2712-S2EAN 6939554949784
53 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight570 g
- ColourBlack, White
- Form factorTurret
- Minimum illumination0.005 lx
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 570 g
- Colour
- Black, White
- Form factor
- Turret
- Minimum illumination
- 0.005 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HAC-HDW1500T-Z-A-POC
- Part number
- HAC-HDW1500T-Z-A-2712-S2
- EAN / UPC
- 6939554949784
- Also known as
- Dahua Technology Lite HAC-HDW1500T-Z-A-POC Turret CCTV security camera Indoor & outdoor 2880 x 1620 pixels Ceiling/Wall/Pole
Specifications
53 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Turret |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | Black, White |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.005 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 107° |
| Lens viewing angle, vertical | 55° |
| Lens viewing angle, diagonal | 130° |
| Tilt angle range | 0 - 78° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Focal length range | 2.7 mm |
| Maximum aperture number | 1.6 |
| Closest focusing distance | 0.5 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 60 m |
| LED type | IR |
| Number of illumination LEDs | 2 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2880 x 1620 pixels |
| Total megapixels | 5 MP |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Privacy masking | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Security
| Specification | Value |
|---|---|
| Mirror | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoC |
| Power consumption (max) | 6.6 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 104.8 mm |
| Height | 122 mm |
| Weight | 570 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 702 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
