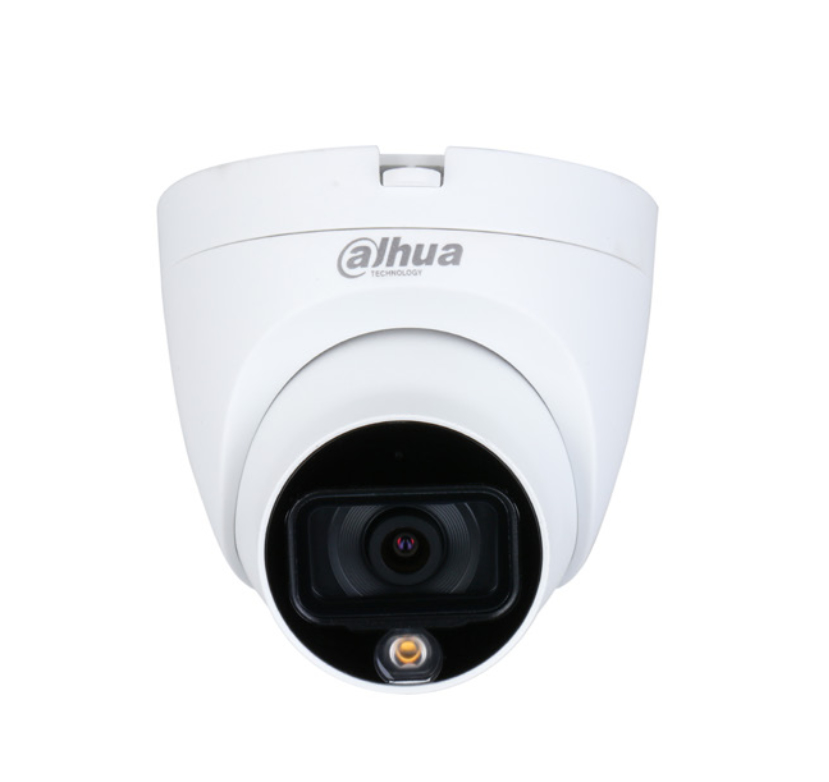

Lite HAC-HDW1209TLQP-LED security camera Dome Indoor & outdoor
1920 x 1080 pixels Ceiling/wall
Model HAC-HDW1209TLQP-LEDEAN 6939554986819
44 specifications
- ConnectivityWired
- TypeDome
- Weight210 g
- ColourBlack, White
- Placement supportedIndoor & outdoor
- Minimum illumination0 lx
Overview
- Connectivity
- Wired
- Type
- Dome
- Weight
- 210 g
- Colour
- Black, White
- Placement supported
- Indoor & outdoor
- Minimum illumination
- 0 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HAC-HDW1209TLQP-LED
- Part number
- HAC-HDW1209TLQP-LED
- EAN / UPC
- 6939554986819
- Also known as
- Dahua Technology Lite HAC-HDW1209TLQP-LED security camera Dome Indoor & outdoor 1920 x 1080 pixels Ceiling/wall
Specifications
44 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | Black, White |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 106° |
| Lens viewing angle, vertical | 56.5° |
| Lens viewing angle, diagonal | 126.2° |
| Tilt angle range | 0 - 78° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of effective pixels (H x V) | 1920 x 1080 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Focal length range | 2.8 mm |
| Maximum aperture number | 1.6 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 20 m |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Frame rate | 30 fps |
| Back Light Compensation (BLC) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 3 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 91.4 mm |
| Diameter | 9.71 cm |
| Weight | 210 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 280 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
