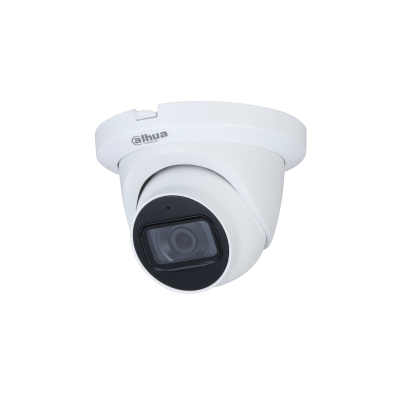

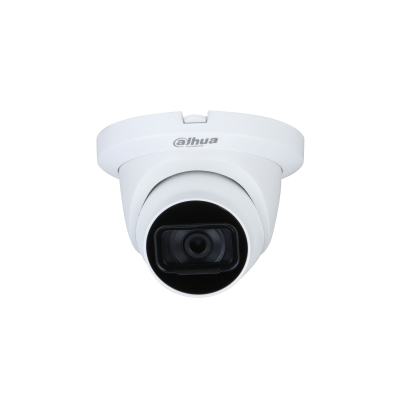

Lite HAC-HDW1200TLMQ-0280B-S5 security camera Dome CCTV security camera Indoor & outdoor
1920 x 1080 pixels Ceiling/wall
Model HAC-HDW1200TLMQ-0280B-S5EAN 6939554986475
44 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight330 g
- ColourBlack, White
- Form factorDome
- Minimum illumination0.02 lx
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 330 g
- Colour
- Black, White
- Form factor
- Dome
- Minimum illumination
- 0.02 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HAC-HDW1200TLMQ-0280B-S5
- Part number
- HAC-HDW1200TLMQ-0280B-S5
- EAN / UPC
- 6939554986475
- Also known as
- Dahua Technology Lite HAC-HDW1200TLMQ-0280B-S5 security camera Dome CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall
Specifications
44 specifications in 13 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Certification | CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | Black, White |
| Housing material | Metal, Plastic |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.02 lx |
| Angle of rotation | 360° |
| Tilt angle range | 0 - 78° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
Lens system
| Specification | Value |
|---|---|
| Maximum aperture number | 1.9 |
| Fixed focal length | 2.8 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 1 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
| Built-in microphone | Yes |
Security
| Specification | Value |
|---|---|
| Mirror | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 2.9 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 88.1 mm |
| Height | 109.9 mm |
| Weight | 330 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 440 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
