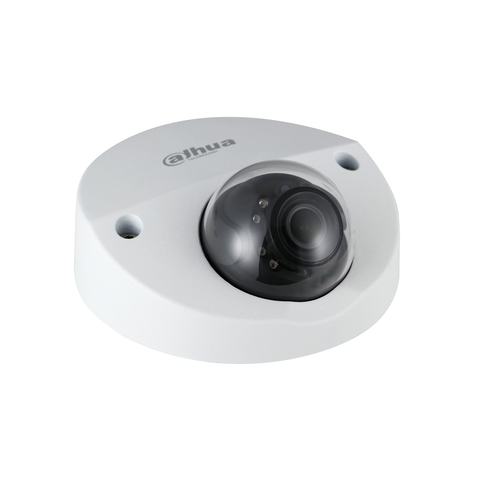

Pro HAC-HDBW2241F-A security camera Dome CCTV security camera Indoor & outdoor
1920 x 1080 pixels Ceiling
Model HAC-HDBW2241F-A
63 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight310 g
- ColourWhite
- Form factorDome
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 310 g
- Colour
- White
- Form factor
- Dome
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HAC-HDBW2241F-A
- Part number
- HAC-HDBW2241F-A
- Also known as
- Dahua Technology Pro HAC-HDBW2241F-A security camera Dome CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
Specifications
63 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Languages support | Multi |
| Certification | CE, FCC, UL |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| Housing material | Aluminium |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.004 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 86.9° |
| Tilt angle range | 0 - 80° |
| Pan range | 0 - 60° |
| White balance | Auto, Manual |
| Camera shutter type | Electronic |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 1920 x 1080 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Maximum aperture number | 1.6 |
| Closest focusing distance | 1.2 m |
| Fixed focal length | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
| Number of illumination LEDs | 8 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 1080p |
| Frame rate | 60 fps |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 4.3 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 50.3 mm |
| Diameter | 10.6 cm |
| Weight | 310 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 450 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
