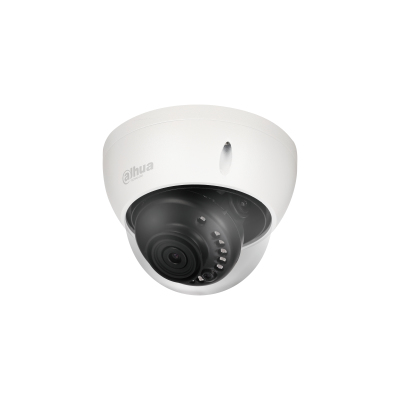

Lite HAC-HDBW1400EP-0280B security camera Dome CCTV security camera Outdoor
2560 x 1440 pixels Ceiling/wall
Model HAC-HDBW1400EP-0280B
48 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight310 g
- ColourWhite
- Form factorDome
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 310 g
- Colour
- White
- Form factor
- Dome
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HAC-HDBW1400EP-0280B
- Part number
- HAC-HDBW1400EP-0280B
- Also known as
- Dahua Technology Lite HAC-HDBW1400EP-0280B security camera Dome CCTV security camera Outdoor 2560 x 1440 pixels Ceiling/wall
Specifications
48 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Infrared (IR) cut-off filter | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Aluminium |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
| Weatherproof | Yes |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.03 lx |
| Angle of rotation | 355° |
| Lens viewing angle, horizontal | 97° |
| Lens viewing angle, vertical | 52° |
| Tilt angle range | 0 - 65° |
| Pan range | 0 - 355° |
| White balance | Auto, Manual |
| Camera shutter speed | PAL: 1/25 - 1/100000; NTSC: 1/30 - 1/100000 |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 12 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2560 x 1440 pixels |
| Total megapixels | 4 MP |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Smart IR | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 81 mm |
| Diameter | 11 cm |
| Weight | 310 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 450 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
