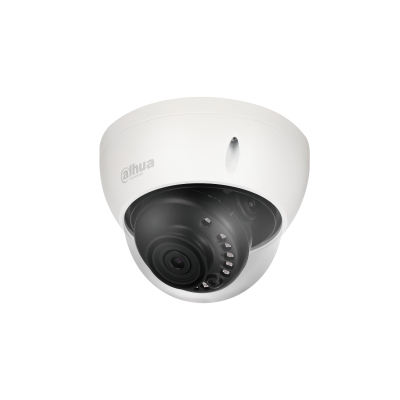

Lite HAC-HDBW1200EP-0360B security camera Dome Indoor & outdoor
1920 x 1080 pixels Ceiling
Model HAC-HDBW1200EP-0360B
42 specifications
- ConnectivityWired
- TypeDome
- Weight310 g
- ColourWhite
- Placement supportedIndoor & outdoor
- Minimum illumination0.02 lx
Overview
- Connectivity
- Wired
- Type
- Dome
- Weight
- 310 g
- Colour
- White
- Placement supported
- Indoor & outdoor
- Minimum illumination
- 0.02 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HAC-HDBW1200EP-0360B
- Part number
- HAC-HDBW1200EP-0360B
- Also known as
- Dahua Technology Lite HAC-HDBW1200EP-0360B security camera Dome Indoor & outdoor 1920 x 1080 pixels Ceiling
Specifications
42 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.02 lx |
| Field of view (FOV) angle | 87.5° |
| Tilt angle range | 0 - 65° |
| Pan range | 0 - 355° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Detect distance | 57 m |
| Observe distance | 23 m |
| Recognize distance | 11 m |
| Closest focusing distance | 0.9 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Supported video modes | 720p, 1080p |
| Noise reduction | Yes |
| Noise reduction technology | Ultra 2D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 81 mm |
| Diameter | 11 cm |
| Weight | 310 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 450 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
