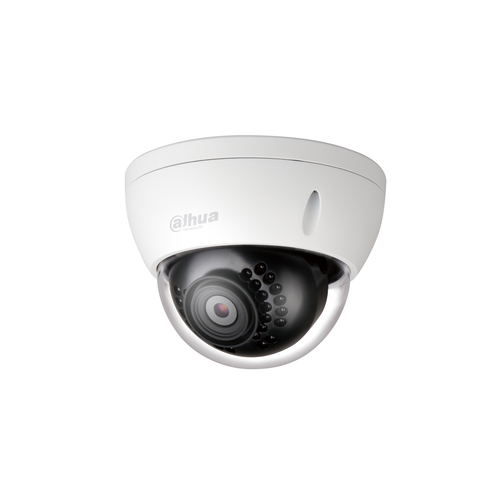

Lite HAC-HDBW1200E Dome Indoor & outdoor
1920 x 1080 pixels Ceiling
Model HAC-HDBW1200EPart no. HAC-HDBW1200E-S3EAN 6939554957192
52 specifications
- ConnectivityWired
- TypeDome
- Weight310 g
- ColourWhite
- Placement supportedIndoor & outdoor
- Minimum illumination0.02 lx
Overview
- Connectivity
- Wired
- Type
- Dome
- Weight
- 310 g
- Colour
- White
- Placement supported
- Indoor & outdoor
- Minimum illumination
- 0.02 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HAC-HDBW1200E
- Part numbers
- HAC-HDBW1200E-S3, HDABW1200E28, DH-HAC-HDBW1200EP-0360B-S4
- EAN / UPC
- 6939554957192
- Also known as
- Dahua Technology Lite HAC-HDBW1200E Dome Indoor & outdoor 1920 x 1080 pixels Ceiling
Specifications
52 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Certification | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.02 lx |
| Field of view (FOV) angle | 87.5° |
| Tilt angle range | 0 - 65° |
| Pan range | 0 - 355° |
| White balance | Auto, Manual |
| Camera shutter speed | 1/30 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Detect distance | 53 m |
| Observe distance | 21 m |
| Recognize distance | 11 m |
| Fixed focus | Yes |
| Identify distance | 5 m |
| Maximum aperture number | 1.85 |
| Closest focusing distance | 0.9 m |
| Fixed focal length | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 12 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Supported video modes | 720p, 1080p |
| Frame rate | 60 fps |
| Noise reduction | Yes |
| Noise reduction technology | Ultra 2D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 3.4 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 81 mm |
| Diameter | 11 cm |
| Weight | 310 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 450 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
