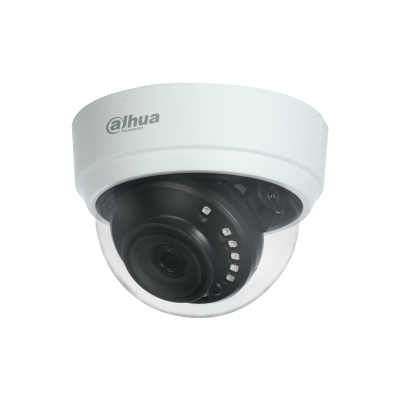

Cooper HAC-D1A21 Dome Indoor
1920 x 1080 pixels Ceiling/Wall/Pole
Model HAC-D1A21Part no. DH-HAC-D1A21EAN 6939554970917
47 specifications
- ConnectivityWired
- TypeDome
- Weight140 g
- ColourWhite
- Placement supportedIndoor
- Minimum illumination0.04 lx
Overview
- Connectivity
- Wired
- Type
- Dome
- Weight
- 140 g
- Colour
- White
- Placement supported
- Indoor
- Minimum illumination
- 0.04 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HAC-D1A21
- Part numbers
- DH-HAC-D1A21, HAC-D1A21, DH-HAC-D1A21N-0280B
- EAN / UPC
- 6939554970917, 6939554970894
- Also known as
- Dahua Technology Cooper HAC-D1A21 Dome Indoor 1920 x 1080 pixels Ceiling/Wall/Pole
Specifications
47 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Placement supported | Indoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
| Housing material | Plastic |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.04 lx |
| Angle of rotation | 355° |
| Lens viewing angle, horizontal | 93° |
| Tilt angle range | 0 - 75° |
| Pan range | 0 - 355° |
| White balance | Auto, Manual |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Maximum aperture number | 1.85 |
| Fixed focal length | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
| Number of illumination LEDs | 12 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Supported video modes | 720p, 1080p |
| Frame rate | 30 fps |
| Analog signal format system | NTSC, PAL |
| Noise reduction | Yes |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 3 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 45 °C |
| Storage temperature (T-T) | -40 - 45 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Diameter | 10 cm |
| Length | 74.3 mm |
| Weight | 140 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 240 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
