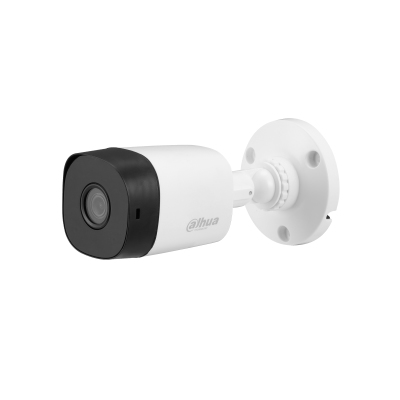

Cooper HAC-B1A21 Bullet Indoor & outdoor
1920 x 1080 pixels Wall/Pole
Model HAC-B1A21Part no. DH-HAC-B1A21EAN 6939554955013
48 specifications
- ConnectivityWired
- TypeBullet
- Weight140 g
- ColourWhite
- Placement supportedIndoor & outdoor
- Minimum illumination0.04 lx
Overview
- Connectivity
- Wired
- Type
- Bullet
- Weight
- 140 g
- Colour
- White
- Placement supported
- Indoor & outdoor
- Minimum illumination
- 0.04 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HAC-B1A21
- Part numbers
- DH-HAC-B1A21, DH-HAC-B1A21N-0360B
- EAN / UPC
- 6939554955013, 6939554982361
- Also known as
- Dahua Technology Cooper HAC-B1A21 Bullet Indoor & outdoor 1920 x 1080 pixels Wall/Pole
Specifications
48 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Plug and Play | Yes |
| Certification | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Wall/Pole |
| Product colour | White |
| Housing material | Plastic |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.04 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 93° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Maximum aperture number | 1.85 |
| Fixed focal length | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Frame rate | 60 fps |
| Analog signal format system | NTSC, PAL |
| Noise reduction | Yes |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 2.7 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Diameter | 7 cm |
| Length | 149 mm |
| Weight | 140 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 170 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
