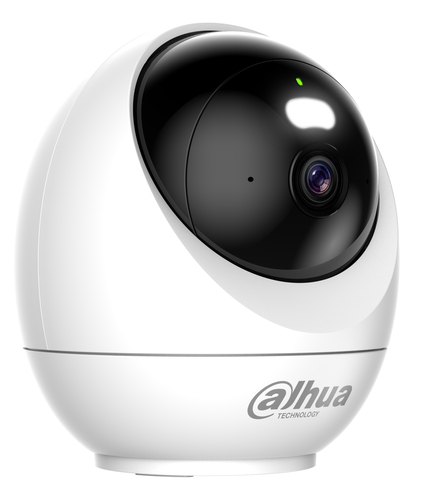

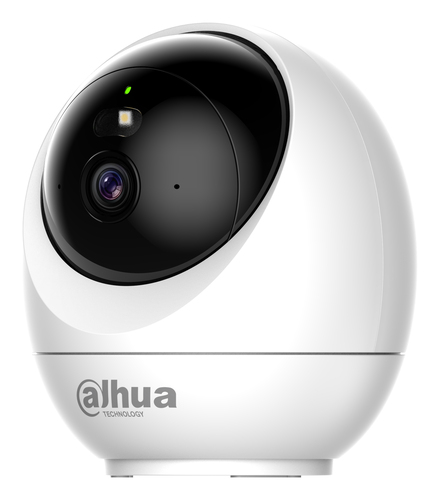

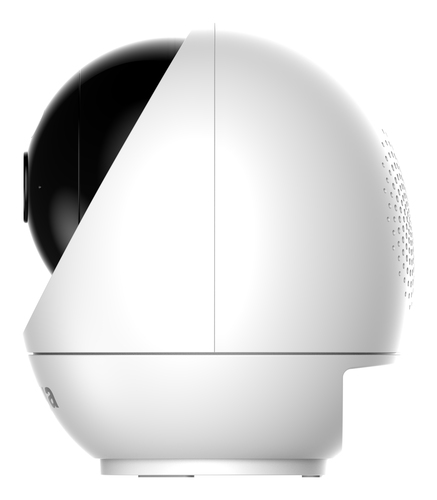

5MP Indoor Fixed-focal Wi-Fi Pan & Tilt Network Camera
Model H5JEEAN 6937552442504
90 specifications
- ConnectivityWired & Wireless
- TypeIP security camera
- Weight200 g
- ColourWhite
- Form factorSpherical
- Lens viewing angle, horizontal95°
Overview
- Connectivity
- Wired & Wireless
- Type
- IP security camera
- Weight
- 200 g
- Colour
- White
- Form factor
- Spherical
- Lens viewing angle, horizontal
- 95°
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- H5JE
- Part number
- H5JE
- EAN / UPC
- 6937552442504
- Also known as
- Dahua Technology 5MP Indoor Fixed-focal Wi-Fi Pan & Tilt Network Camera
Specifications
90 specifications in 20 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired & Wireless |
| PTZ modes | Preset point |
| Auto-tracking | Yes |
| Auto patrol mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Built-in light | Yes |
| Certification | CE-RED: Radio Equipment Directive 2014/53/EU |
Design
| Specification | Value |
|---|---|
| Form factor | Spherical |
| Mounting type | Ceiling/Wall/Desk |
| Product colour | White |
| LED indicators | Yes |
| Housing material | Plastic |
| Protection features | Corrosion resistant |
Camera
| Specification | Value |
|---|---|
| Lens viewing angle, horizontal | 95° |
| Lens viewing angle, vertical | 53° |
| Lens viewing angle, diagonal | 110° |
| Tilt angle range | -55 - 60° |
| Pan range | 0 - 355° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3.2 mm (1 / 3.2") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Digital zoom | 2.6x |
| Fixed focus | Yes |
| Maximum aperture number | 2 |
| Fixed focal length | 2.8 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 10 m |
| LED type | IR/White |
| Number of illumination LEDs | 1 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2880 x 1620 pixels |
| Total megapixels | 5 MP |
| Video compression formats | H.265, H.264, H.264H, H.264B |
| Supported graphics resolutions | 2880 x 1620, 640 x 360 |
| Supported video modes | 1620p, 360p |
| Frame rate | 25 fps |
| Video streaming | Yes |
| Bit rate | H.264: 12 kbps–4096 kbps H.265: 32 kbps–4096 kbps |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Audio formats supported | AAC-LC |
| Audio codecs | G.711a; G.711Mu; PCM |
| Sample rate | 16 kHz |
| Built-in microphone | Yes |
| Number of microphones | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Ethernet interface type | Fast Ethernet |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Cabling technology | 10/100Base-T(X) |
| Frequency band | 2.4&5 |
| Live view | Yes |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | Yes |
Security
| Specification | Value |
|---|---|
| Intelligent Video Surveillance (IVS) system features | Human detection, Pet detection |
| Privacy protection | Yes |
| Security algorithms | WPA3 |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
| Management software | DMSS |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Power consumption (typical) | 1.6 W |
| Power consumption (max) | 3.8 W |
| DC output voltage | 5 |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 111 mm |
| Depth | 98 mm |
| Height | 96 mm |
| Weight | 200 g |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | CE, Low Voltage Directive (LVD), Electromagnetic Compatibility (EMC) |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Cables included | USB |
| Mounting brackets included | Yes |
| Screws included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Alarm function | Yes |
| USB connector | USB-C |
