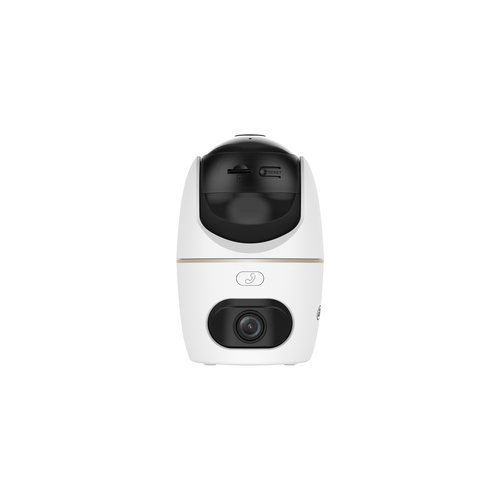

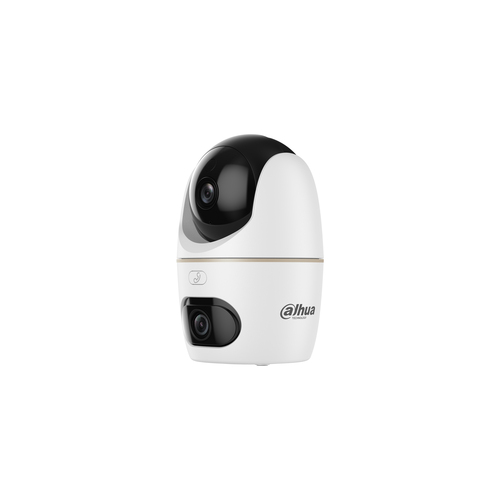

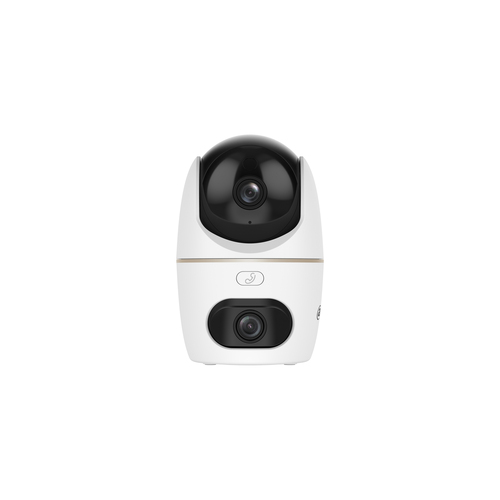

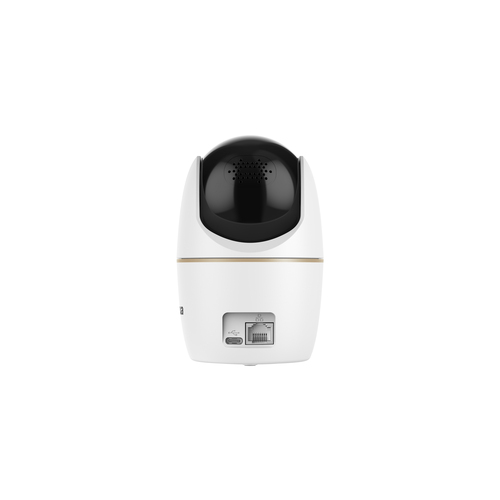

3+3MP Indoor Wi-Fi Dual-Lens Pan & Tilt Camera
Model H3D-3FEAN 6939554941856
61 specifications
- ConnectivityWired & Wireless
- TypeIP security camera
- Weight233 g
- ColourWhite
- Form factorSpherical
- Camera pan controlYes
Overview
- Connectivity
- Wired & Wireless
- Type
- IP security camera
- Weight
- 233 g
- Colour
- White
- Form factor
- Spherical
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- H3D-3F
- Part number
- H3D-3F
- EAN / UPC
- 6939554941856
- Also known as
- Dahua Technology 3+3MP Indoor Wi-Fi Dual-Lens Pan & Tilt Camera
Specifications
61 specifications in 18 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired & Wireless |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Spherical |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Plastic |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 79° |
| Lens viewing angle, vertical | 43° |
| Lens viewing angle, diagonal | 94° |
| Tilt angle range | -5 - 90° |
| Pan range | 0 - 349° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3.2 mm (1 / 3.2") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 2 |
| Maximum aperture number | 2 |
| Fixed focal length | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2304 x 1296 pixels |
| Video compression formats | H.265 |
| Frame rate | 15 fps |
| Bit rate | 512 - 4096 kbps |
| Digital Wide Dynamic Range (DWDR) | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio formats supported | G.711 A-law |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Ethernet interface type | Fast Ethernet |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | Yes |
Security
| Specification | Value |
|---|---|
| Intelligent Video Surveillance (IVS) system features | Abnormal sound detection, Human detection, Pet detection |
| Video motion detection | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 2.3 W |
| Power consumption (max) | 5.2 W |
| DC output voltage | 5 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 125.7 mm |
| Diameter | 8.09 cm |
| Weight | 233 g |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Cables included | AC |
| Mounting brackets included | Yes |
| Screws included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
