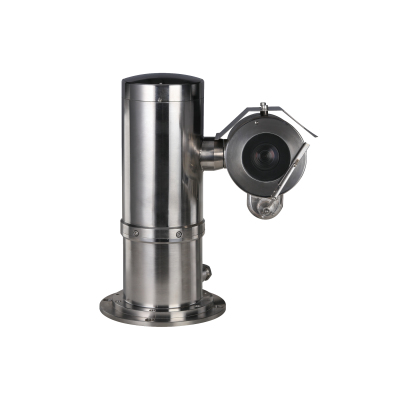

Dahua Technology EPC230U-PTZ security camera IP security camera Outdoor
Dahua Technology

EPC230U-PTZ security camera IP security camera Outdoor

1920 x 1080 pixels Floor

Model EPC230U-PTZ

88 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight23.3 kg
  • ColourSatin steel
  • Mounting typeFloor
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
23.3 kg
Colour
Satin steel
Mounting type
Floor
Camera pan control
Yes
Brand
Dahua Technology
Model
EPC230U-PTZ
Part number
EPC230U-PTZ
Also known as
Dahua Technology EPC230U-PTZ security camera IP security camera Outdoor 1920 x 1080 pixels Floor

Specifications

88 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes8 Tour
PTZ protocolsDH-SD, Pelco-P/D
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationATEX IECEx

Design

Mounting typeFloor
Product colourSatin steel
Housing materialStainless steel
International Protection (IP) codeIP68
Fog proofYes

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.005 lx
Tilt angle range-90 - 90°
Tilt speed40 °/sec
Pan range0 - 360°
Pan preset speed40 °/sec
Pan speed40 °/sec
White balanceATW, Auto, Indoor, Manual, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/1 - 1/30000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom30x
Digital zoom16x
Detect distance1862 m
Observe distance744 m
Recognize distance372 m
Focal length range4.5 - 135 mm
Auto focusYes
FocusManual
Identify distance186 m
Maximum aperture number4.4
Minimum aperture number1.6
Closest focusing distance0.1 m

Night vision

Night visionYes

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.265, H.265+
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction, Ultra 2D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.265/H.264: 448K ~ 8192Kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedAAC, G.711, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

ROM capacity128 MB

Ports & interfaces

RS-485 ports1

Security

Alarm input channels2
Alarm output channels1
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes
Management softwareSmart PSS, DSS, DMSS

Power

Power source typeAC
AC input voltage220 V
Power consumption (typical)35 W

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 65 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width301 mm
Height402 mm
Diameter33.4 cm
Weight23.3 kg

Packaging data

Package weight27.5 kg

Packaging content

Number of cameras1
