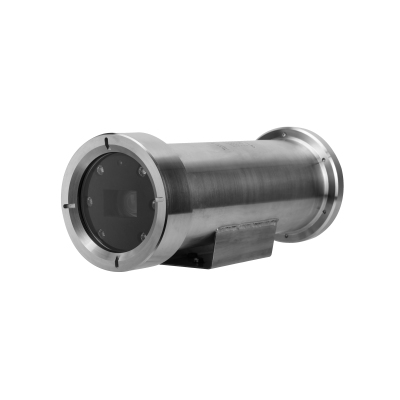

Dahua Technology EPC230U security camera Bullet IP security camera Outdoor
Dahua Technology

EPC230U security camera Bullet IP security camera Outdoor

1920 x 1080 pixels Wall

Model EPC230UEAN 6939554938771

85 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight8.7 kg
  • ColourStainless steel
  • Form factorBullet
  • Minimum illumination0.005 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
8.7 kg
Colour
Stainless steel
Form factor
Bullet
Minimum illumination
0.005 lx
Brand
Dahua Technology
Model
EPC230U
Part numbers
EPC230U, DH-EPC230U
EAN / UPC
6939554938771
Also known as
Dahua Technology EPC230U security camera Bullet IP security camera Outdoor 1920 x 1080 pixels Wall

Specifications

85 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
PTZ controlYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE FCC ATEX IECEx

Design

Form factorBullet
Mounting typeWall
Product colourStainless steel
Housing materialStainless steel
International Protection (IP) codeIP68
Fog proofYes

Camera

Minimum illumination0.005 lx
White balanceATW, Auto, Indoor, Manual, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/1 - 1/30000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom30x
Digital zoom16x
Detect distance1862 m
Observe distance744 m
Recognize distance372 m
Focal length range4.5 - 135 mm
Auto focusYes
FocusManual
Identify distance186 m
Maximum aperture number4.4
Minimum aperture number1.6
Closest focusing distance0.1 m

Night vision

Night visionYes
Night vision distance100 m
LED typeIR
Number of illumination LEDs6

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.265, H.265+
Frame rate25 fps
Video streamingYes
Noise reductionYes
Noise reduction technologyUltra 2D noise reduction, Ultra 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.265/H.264: 448K ~ 8192Kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes

Audio

Audio formats supportedAAC, G.711, G.722.1, G.726
Signal-to-Noise Ratio (SNR)55 dB

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast

Storage

Flash memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-485 ports1
BNC output ports1

Security

Alarm input channels2
Alarm output channels1
Intelligent Video Surveillance (IVS) system featuresAbandoned object, Face detection, Intrusion, Missing object, Tripwire
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes
Management softwareSmart PSS, DSS, DMSS

Power

Power source typeAC, PoE
AC input voltage220 V
Power consumption (max)25 W

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width149.5 mm
Height143 mm
Diameter39.6 cm
Weight8.7 kg

Packaging content

Number of cameras1
