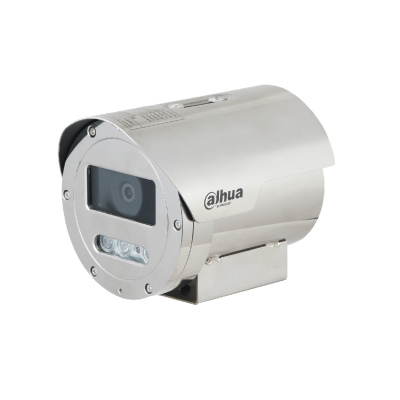

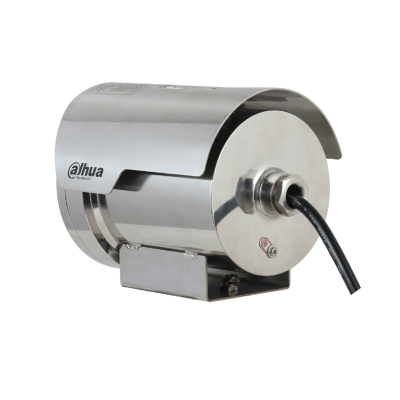

Dahua Technology WizMind ECA3A1404-HNR-XB Bullet IP security camera Indoor & outdoor
Dahua Technology

WizMind ECA3A1404-HNR-XB Bullet IP security camera Indoor & outdoor

2560 x 1440 pixels

Model ECA3A1404-HNR-XBPart no. DH-ECA3A1404N-HNR-XB

93 specifications
  • Memory1000 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight3 kg
  • ColourStainless steel
  • Form factorBullet
See all specifications

Overview

Memory
1000 MB
Connectivity
Wired
Type
IP security camera
Weight
3 kg
Colour
Stainless steel
Form factor
Bullet
Brand
Dahua Technology
Model
ECA3A1404-HNR-XB
Part number
DH-ECA3A1404N-HNR-XB
Also known as
Dahua Technology WizMind ECA3A1404-HNR-XB Bullet IP security camera Indoor & outdoor 2560 x 1440 pixels

Specifications

93 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 ATEX: II 2 G Ex db IIC T6 Gb, II 2 D Ex tb IIIC T80°C Db IECEx: Ex db IIC T6 Gb, Ex tb IIIC T80°C Db

Design

Form factorBullet
Product colourStainless steel
Protection featuresCrash proof, Explosion proof
International Protection (IP) codeIP68

Camera

Minimum illumination0 lx
White balanceAuto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/1 - 1/30000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)2560 x 1440 pixels

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom4x
Digital zoom16x
Detect distance240 m
Observe distance95 m
Recognize distance48 m
Focal length range2.8 - 12 mm
Auto focusYes
FocusMotorized/Manual
Identify distance24 m
Maximum aperture number2.7
Closest focusing distance0.5 m

Night vision

Night visionYes
Night vision distance40 m
LED typeIR
Number of illumination LEDs3

Video

Maximum resolution2560 x 1440 pixels
Total megapixels4 MP
Video compression formatsH.264+, H.264B, H.264H, H.264M, H.265, H.265+
Supported graphics resolutions352 x 288, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440
Frame rate30 fps
Analog signal format systemNTSC
Video streamingYes
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Image stabilizerYes
3D NR (Noise Reduction)Yes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedAAC, G.711 A-law, G.711 μ-law, G.722.1, G.723, G.726, G.729
Signal-to-Noise Ratio (SNR)55 dB
Bit rate range2816 - 8192 Kbit/s

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsIPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; SNMP v1/v2c/v3 (MIB-2); RTCP; RTMP
Cabling technology10/100Base-T(X)
Number of users20 user(s)
Streaming methodMulticast, Unicast
Client interoperabilityONVIF (Profile S&G&T); CGI

Storage

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory1000 MB
ROM capacity4000 MB

Security

Alert notification typeE-mail
Human and vehicle targets classificationYes
Intelligent Video Surveillance (IVS) system featuresFace detection, Human detection, Intrusion, Tripwire, Vehicle detection
Motion sensorYes

Management features

Web browserYes
Management softwareSmart PSS; DSS; DMSS; IVSS

Power

Power source typeDC, PoE
Power consumption (typical)4 W
Power consumption (max)9 W
DC output voltage12
DC output current1.5 A

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width149 mm
Depth215 mm
Height151 mm
Weight3 kg

Packaging data

Package weight6.3 kg

Packaging content

Number of cameras1

Other features

Browser supportedChrome 42 and earlier versions, Firefox 52 and earlier versions, Safari
