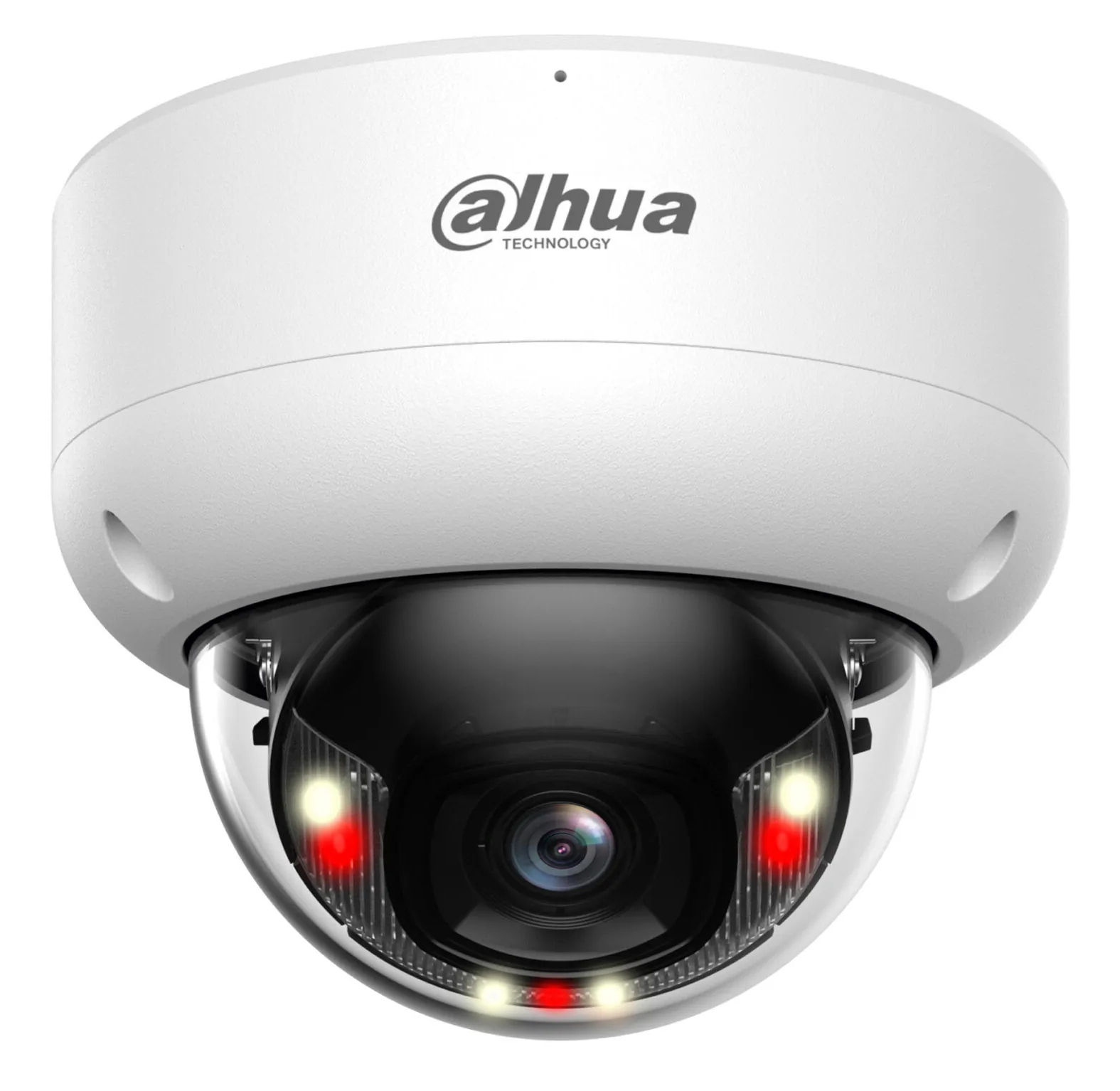

DHT0040165 Dome IP security camera Outdoor
1920 x 1080 pixels Wall
Model DHT0040165Part no. DH-IPC-HDBW3249EP-AS-IL-0280B
53 specifications
- ConnectivityWired
- TypeIP security camera
- ColourWhite
- Form factorDome
- Minimum illumination0.002 lx
- Sensor typeCMOS
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Colour
- White
- Form factor
- Dome
- Minimum illumination
- 0.002 lx
- Sensor type
- CMOS
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DHT0040165
- Part number
- DH-IPC-HDBW3249EP-AS-IL-0280B
- Also known as
- Dahua Technology DHT0040165 Dome IP security camera Outdoor 1920 x 1080 pixels Wall
Specifications
53 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Dynamic range | 120 dB |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Wall |
| Product colour | White |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.002 lx |
| White balance | Auto |
| Camera shutter type | Mechanical |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
Lens system
| Specification | Value |
|---|---|
| Fixed focal length | 2.8 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 40 m |
| LED type | IR/White |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video compression formats | H.265+, H.265, H.264+, H.264, M-JPEG |
| Supported graphics resolutions | 1200 x 1920 |
| Supported video modes | 1080p |
| Frame rate | 25 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
Audio
| Specification | Value |
|---|---|
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
Security
| Specification | Value |
|---|---|
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Intelligent Video Surveillance (IVS) system features | Crossing line, Intrusion, Scene change, Human detection, Vehicle detection |
| Video motion detection | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 89.1 mm |
| Diameter | 11.2 cm |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
