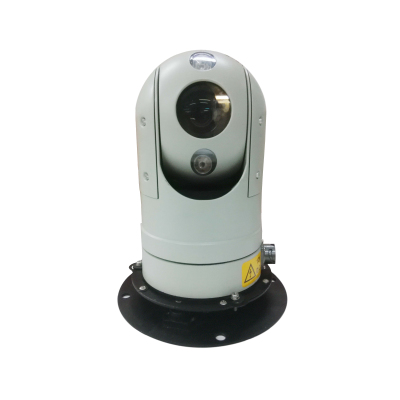

PIR DHI-MPTZ1100-2030RA-NT security camera Dome IP security camera Indoor & outdoor
1920 x 1080 pixels Ceiling/Desk
Model DHI-MPTZ1100-2030RA-NT
51 specifications
- ConnectivityWired
- TypeIP security camera
- ColourWhite
- Form factorDome
- Minimum illumination0.005 lx
- Sensor typeCMOS
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Colour
- White
- Form factor
- Dome
- Minimum illumination
- 0.005 lx
- Sensor type
- CMOS
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DHI-MPTZ1100-2030RA-NT
- Part number
- DHI-MPTZ1100-2030RA-NT
- Also known as
- Dahua Technology PIR DHI-MPTZ1100-2030RA-NT security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/Desk
Specifications
51 specifications in 13 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | 8 Tour |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/Desk |
| Product colour | White |
| Housing material | Aluminium |
| International Protection (IP) code | IP66 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.005 lx |
| Tilt angle range | 20 - 90° |
| Tilt speed | 0.1 °/sec |
| Pan range | 0 - 360° |
| Pan speed | 0.1 °/sec |
| White balance | Auto, Indoor, Manual, Outdoor, Sodium lamp |
| Camera shutter speed | 1/1 - 1/30000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of effective pixels (H x V) | 1920 x 1080 pixels |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Optical zoom | 30x |
| Digital zoom | 16x |
| Focal length range | 4.5 - 135 mm |
| Maximum aperture number | 4.4 |
| Minimum aperture number | 1.6 |
| Closest focusing distance | 1 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 80 m |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video formats supported | H.264 |
| Video compression formats | H.264, H.264B, H.264H, H.264M, M-JPEG |
| Supported graphics resolutions | 352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Gain control type | Auto/Manual |
Audio
| Specification | Value |
|---|---|
| Audio formats supported | AAC, G.711 A-law, G.722 |
| Signal-to-Noise Ratio (SNR) | 55 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Supported network protocols | Default:IPv4/IPv6,HTTP,HTTPS,Qos,FTP,SMTP,UPnP,IGMP,SNMP,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,ICMP,DHCP,SSL/TLS,SFTP,RTCP,SSH,PPPoE,onvif Customize:CIFS/SMB,SOCKS |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Maximum memory card size | 128 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 24 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -35 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
