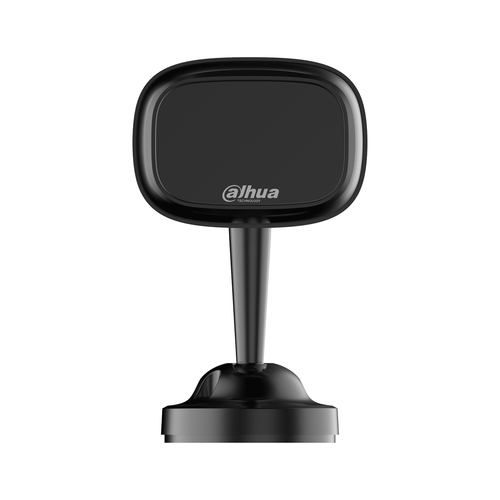

DHI-DAECDM5110-CYN Outdoor
1280 x 720 pixels Desk
Model DHI-DAECDM5110-CYNPart no. DHI-DAE-CDM5110-CYN
36 specifications
- Weight191.6 g
- ColourBlack
- Placement supportedOutdoor
- Mounting typeDesk
- Lens viewing angle, horizontal61.8°
- Sensor typeCMOS
Overview
- Weight
- 191.6 g
- Colour
- Black
- Placement supported
- Outdoor
- Mounting type
- Desk
- Lens viewing angle, horizontal
- 61.8°
- Sensor type
- CMOS
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DHI-DAECDM5110-CYN
- Part number
- DHI-DAE-CDM5110-CYN
- Also known as
- Dahua Technology DHI-DAECDM5110-CYN Outdoor 1280 x 720 pixels Desk
Specifications
36 specifications in 13 groups
Performance
| Specification | Value |
|---|---|
| Placement supported | Outdoor |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Mounting type | Desk |
| Product colour | Black |
| International Protection (IP) code | IP54 |
Camera
| Specification | Value |
|---|---|
| Lens viewing angle, horizontal | 61.8° |
| Lens viewing angle, vertical | 37.5° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 4 mm (1 / 4") |
Lens system
| Specification | Value |
|---|---|
| Maximum aperture number | 1.4 |
| Fixed focal length | 4 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 3 m |
| LED type | IR |
| Number of illumination LEDs | 1 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1280 x 720 pixels |
| Frame rate | 30 fps |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Gain control type | Auto |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 2.5 W |
| DC output voltage | 9, 16 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 107.3 mm |
| Depth | 64 mm |
| Height | 27.7 mm |
| Weight | 191.6 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 165 mm |
| Package depth | 80 mm |
| Package height | 90 mm |
| Package weight | 237 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
