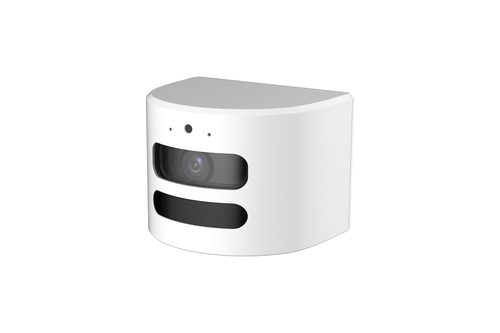

DHI-ARD1130-CAM security camera IP security camera Indoor
1280 x 960 pixels Wall
Model DHI-ARD1130-CAM
37 specifications
- TypeIP security camera
- Weight230 g
- ColourWhite
- Mounting typeWall
- Lens viewing angle, horizontal112°
- Sensor typeCMOS
Overview
- Type
- IP security camera
- Weight
- 230 g
- Colour
- White
- Mounting type
- Wall
- Lens viewing angle, horizontal
- 112°
- Sensor type
- CMOS
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DHI-ARD1130-CAM
- Part number
- DHI-ARD1130-CAM
- Also known as
- Dahua Technology DHI-ARD1130-CAM security camera IP security camera Indoor 1280 x 960 pixels Wall
Specifications
37 specifications in 11 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Mounting type | Wall |
| Product colour | White |
| Housing material | Plastic |
| International Protection (IP) code | IP66 |
Camera
| Specification | Value |
|---|---|
| Lens viewing angle, horizontal | 112° |
| Lens viewing angle, vertical | 60° |
| Lens viewing angle, diagonal | 133° |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/30 –1/10000 |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Detect distance | 40 m |
| Observe distance | 16 m |
| Recognize distance | 8 m |
| Identify distance | 4 m |
| Closest focusing distance | 0.5 m |
| Fixed focal length | 2.8 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 15 m |
| LED type | IR |
| Number of illumination LEDs | 2 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1280 x 960 pixels |
| Total megapixels | 1.3 MP |
| Supported graphics resolutions | 160 x 120, 320 x 240, 640 x 480 (VGA), 1280 x 960 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 1.4 W |
| Power consumption (max) | 3.6 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -25 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 64.6 mm |
| Depth | 80 mm |
| Height | 58.4 mm |
| Weight | 230 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
