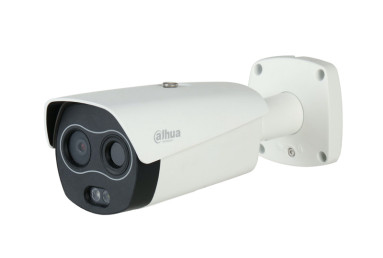

Dahua Technology Lite DH-TPC-BF2221-T security camera Bullet IP security camera Indoor & outdoor
Dahua Technology

Lite DH-TPC-BF2221-T security camera Bullet IP security camera Indoor & outdoor

1920 x 1080 pixels Wall

Model DH-TPC-BF2221-T

57 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.4 kg
  • ColourWhite
  • Form factorBullet
  • Camera pan controlNo
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
1.4 kg
Colour
White
Form factor
Bullet
Camera pan control
No
Brand
Dahua Technology
Model
DH-TPC-BF2221-T
Part number
DH-TPC-BF2221-T
Also known as
Dahua Technology Lite DH-TPC-BF2221-T security camera Bullet IP security camera Indoor & outdoor 1920 x 1080 pixels Wall

Specifications

57 specifications in 15 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Auto-trackingYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes

Design

Form factorBullet
Mounting typeWall
Product colourWhite
International Protection (IP) codeIP67

Camera

Camera pan controlNo
Camera tilt controlNo
Minimum illumination0.0005 lx
White balanceAuto, Indoor, Manual, Natural, Outdoor, Sodium lamp
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Sensor type (thermal module)Vanadium Oxide Uncooled Focal Plane Arrays
Effective sensor resolution (thermal module)256 x 192 pixels

Lens system

FocusManual
Maximum aperture number2
Minimum aperture number1.9
Aperture number (thermal module)1
Closest focusing distance0.2 m

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.265, M-JPEG
Noise reductionYes
Noise reduction technology3D noise reduction
Image stabilizerYes
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Region of Interest (ROI) encodingYes

Audio

Signal-to-Noise Ratio (SNR)56 dB

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsHTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP
Number of users20 user(s)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-485 ports1

Power

Power source typeDC, PoE
Power consumption (typical)12 W

Operational conditions

Operating temperature (T-T)-30 - 60 °C

Weight & dimensions

Width103.8 mm
Height95.8 mm
Length279.9 mm
Weight1.4 kg

Packaging data

Package weight1.9 kg

Packaging content

Number of cameras1
