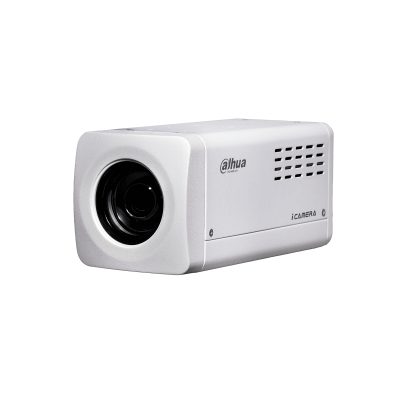

Dahua Technology Pro DH-SDZ2030SN-N security camera IP security camera Indoor
Dahua Technology

Pro DH-SDZ2030SN-N security camera IP security camera Indoor

1920 x 1080 pixels

Model DH-SDZ2030SN-N

69 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight1 kg
  • ColourWhite
  • Minimum illumination0.005 lx
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
1 kg
Colour
White
Minimum illumination
0.005 lx
Brand
Dahua Technology
Model
DH-SDZ2030SN-N
Part number
DH-SDZ2030SN-N
Also known as
Dahua Technology Pro DH-SDZ2030SN-N security camera IP security camera Indoor 1920 x 1080 pixels

Specifications

69 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Design

Product colourWhite
Housing materialMetal

Camera

Minimum illumination0.005 lx
Lens viewing angle, horizontal67.8°
White balanceATW, Auto, Indoor, Manual, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/1s - 1/30000

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Zoom capabilityYes
Optical zoom30x
Digital zoom16x
Focal length range4.5 - 135 mm
Auto focusYes
FocusMotorized/Manual
Maximum aperture number4.4
Minimum aperture number1.6
Closest focusing distance1 m

Night vision

Night visionYes

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.265, H.265+
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate60 fps
Noise reductionYes
Noise reduction technologyUltra 2D noise reduction, Ultra 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.265/H.264: 448K ~ 8192Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes

Audio

Audio formats supportedAAC, G.726
Voice codecsG.711Mu, G.711a, G.722, G.726, G.729

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Networking standardsIEEE 802.1x, IEEE 802.3af
Supported network protocolsIPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP, ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

Flash memory128 MB
Internal memory512 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-232 ports1
RS-485 ports1
DC-in jackYes

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Intrusion, Missing object

Management features

Web-based managementYes
Web browserYes
Management softwareSmart PSS, DSS, DMSS

Power

Power source typeDC, PoE
Power consumption (typical)10 W
DC output voltage12
DC output current1.5 A

Operational conditions

Operating temperature (T-T)-40 - 70 °C

Weight & dimensions

Width160 mm
Depth70 mm
Height78 mm
Weight1 kg

Packaging content

Number of cameras1
