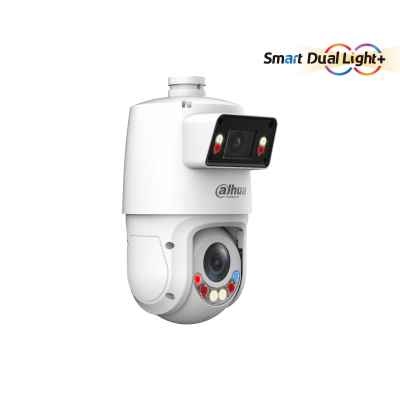

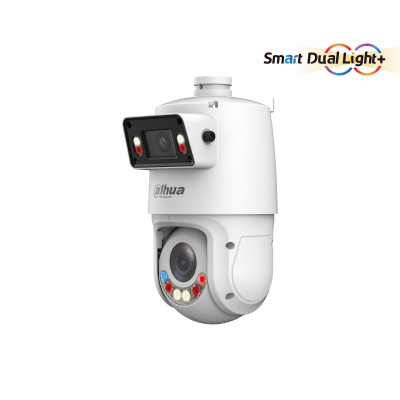

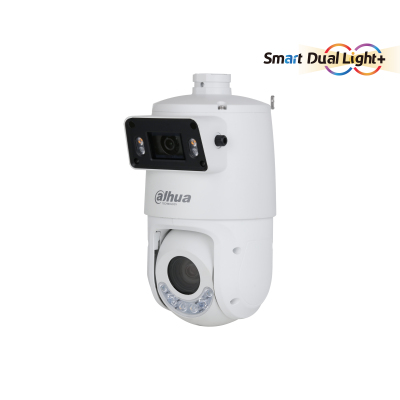

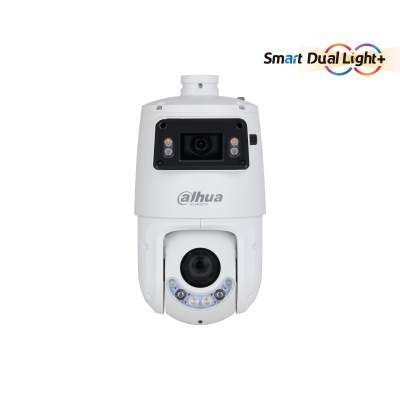

WizSense DH-SDT4E425-4F-GB-A-PV1 security camera Turret IP security camera Indoor & outdoor
2560 x 1440 pixels Ceiling/Wall/Pole
Model DH-SDT4E425-4F-GB-A-PV1
84 specifications
- Memory128 MB
- ConnectivityWired
- TypeIP security camera
- Weight3.41 kg
- ColourWhite
- Form factorTurret
Overview
- Memory
- 128 MB
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 3.41 kg
- Colour
- White
- Form factor
- Turret
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-SDT4E425-4F-GB-A-PV1
- Part number
- DH-SDT4E425-4F-GB-A-PV1
- Also known as
- Dahua Technology WizSense DH-SDT4E425-4F-GB-A-PV1 security camera Turret IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/Wall/Pole
Specifications
84 specifications in 19 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | 5 Pattern, Auto pan |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Alarm input/output | Yes |
| Dynamic range | 120 dB |
| Certification | CE: EN55032/EN55024/EN50130-4 |
Design
| Specification | Value |
|---|---|
| Form factor | Turret |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
| International Protection (IP) code | IP66 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 51.9-3° |
| Lens viewing angle, vertical | 39.7-2.2° |
| Lens viewing angle, diagonal | 63.1.-3.7° |
| Tilt angle range | -15 - 90° |
| Pan range | 0 - 360° |
| White balance | Auto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/3 –1/100000 |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
Panoramic camera
| Specification | Value |
|---|---|
| Closest focusing distance (panoramic camera) | 0.2 m |
| Viewing angle, horizontal (panoramic camera) | 53° |
| Viewing angle, vertical (panoramic camera) | 101° |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Optical zoom | 25x |
| Digital zoom | 16x |
| Detect distance | 2500 m |
| Observe distance | 987.5 m |
| Recognize distance | 500 m |
| Maximum aperture number | 3.6 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 4 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2560 x 1440 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.264+, H.264B, H.264H, H.265, H.265+ |
| Supported graphics resolutions | 342 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2560 x 1440 |
| Video streaming | Yes |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
Audio
| Specification | Value |
|---|---|
| Audio formats supported | G.711 A-law, G.711 μ-law, G.722.1, G.723, G.726, G.729, MPEG-2 |
| Signal-to-Noise Ratio (SNR) | 55 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP |
| Number of users | 20 user(s) |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
Storage
| Specification | Value |
|---|---|
| Internal memory | 128 MB |
| ROM capacity | 128 MB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Specification | Value |
|---|---|
| Active tampering alarm | Yes |
| Intelligent Video Surveillance (IVS) system features | Intrusion, Tripwire |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Web browser | Yes |
| Management software | DMSS; DSS Pro |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoC |
| Power consumption (typical) | 12 W |
| Power consumption (max) | 25 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 184.4 mm |
| Depth | 160 mm |
| Height | 304.6 mm |
| Weight | 3.41 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
