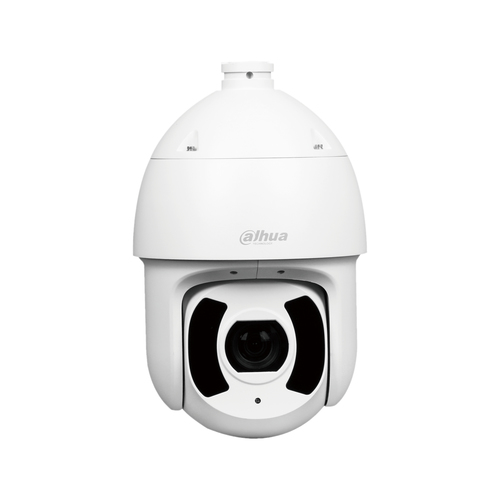

All-environment DH-SD6CE225IN-HC-S3 security camera Dome Indoor & outdoor
1920 x 1080 pixels Ceiling/Wall/Pole
Model DH-SD6CE225IN-HC-S3
46 specifications
- ConnectivityWired
- TypeDome
- Weight5.8 kg
- ColourBlack, White
- Placement supportedIndoor & outdoor
- Minimum illumination0 lx
Overview
- Connectivity
- Wired
- Type
- Dome
- Weight
- 5.8 kg
- Colour
- Black, White
- Placement supported
- Indoor & outdoor
- Minimum illumination
- 0 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-SD6CE225IN-HC-S3
- Part number
- DH-SD6CE225IN-HC-S3
- Also known as
- Dahua Technology All-environment DH-SD6CE225IN-HC-S3 security camera Dome Indoor & outdoor 1920 x 1080 pixels Ceiling/Wall/Pole
Specifications
46 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | Black, White |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Tilt angle range | -20 - 90° |
| Pan range | 0 - 360° |
| Auto flip | Yes |
| White balance | ATW, Auto, Indoor, Manual, Outdoor |
| Camera shutter speed | 1/1 - 1/30000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of effective pixels (H x V) | 1920 x 1080 pixels |
Lens system
| Specification | Value |
|---|---|
| Optical zoom | 25x |
| Digital zoom | 16x |
| Focal length range | 4.8 - 120 mm |
| Maximum aperture number | 4.4 |
| Minimum aperture number | 1.6 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 200 m |
| Number of illumination LEDs | 6 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| RS-485 ports | 1 |
| BNC output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 24 V |
| Power consumption (typical) | 25 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 337.4 mm |
| Diameter | 20.9 cm |
| Weight | 5.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 9.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
