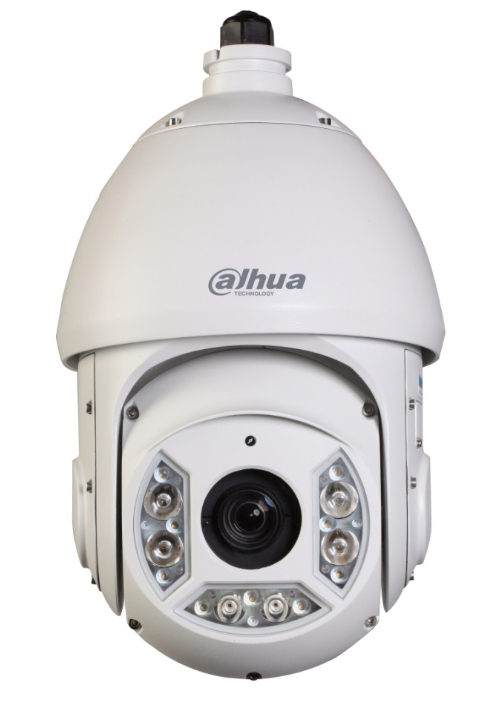

Dahua Technology DH-SD6CA230TN-HN security camera Dome IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling

Model DH-SD6CA230TN-HN

82 specifications

ConnectivityWired
TypeIP security camera
Weight5 kg
ColourWhite
Form factorDome
Minimum illumination0.005 lx

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Weight: 5 kg
Colour: White
Form factor: Dome
Minimum illumination: 0.005 lx

Brand: Dahua Technology
Category: Security Camera
Model: DH-SD6CA230TN-HN
Part number: DH-SD6CA230TN-HN
Also known as: Dahua Technology DH-SD6CA230TN-HN security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling

Specifications

82 specifications in 18 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ control	Yes
Auto pan mode	Yes
Preset points	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Alarm input/output	Yes
Remote viewing	Yes

Design

Specification	Value
Form factor	Dome
Mounting type	Ceiling
Product colour	White
International Protection (IP) code	IP66
Weatherproof	Yes

Camera

Specification	Value
Minimum illumination	0.005 lx
Lens viewing angle, horizontal	67.8°
Tilt angle range	-15 - 90°
Tilt speed	220 °/sec
Pan range	0 - 360°
Pan speed	240 °/sec
White balance	ATW, Auto, Indoor, Manual, Outdoor
Camera shutter type	Electronic
Camera shutter speed	1/1 - 1/30000 s

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Progressive scan	Yes

Lens system

Specification	Value
Zoom capability	Yes
Optical zoom	30x
Digital zoom	16x
Focal length range	4.5 - 135 mm
Auto focus	Yes
Maximum aperture number	4.4

Night vision

Specification	Value
Night vision	Yes
Night vision distance	100 m
LED type	IR
Number of illumination LEDs	6

Video

Specification	Value
Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Video formats supported	H.264, M-JPEG
Video compression formats	H.264, M-JPEG
Supported graphics resolutions	352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes	240p, 480p, 576p, 720p, 1080p
Frame rate	30 fps
Analog signal format system	NTSC, PAL
Noise reduction	Yes
Automatic gain control	Yes
Full HD	Yes
Privacy masking	Yes

Audio

Specification	Value
Signal-to-Noise Ratio (SNR)	50 dB
Voice codecs	G.711a

Network

Specification	Value
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.1x
Supported network protocols	IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Cabling technology	10/100Base-T(X)
Number of users	20 user(s)
Quality of Service (QoS) support	Yes

Storage

Specification	Value
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
RS-485 ports	1
BNC output ports	1
Interface	RJ-45/BNC

Security

Specification	Value
HTTPS encryption	Yes
IP address filtering	Yes
Security algorithms	802.1x RADIUS, HTTPS, SMTP-AUTH, SNMP, SSL/TLS

Power

Specification	Value
AC input voltage	24 V
Power consumption (typical)	10.5 W
Power consumption (max)	26 W

Operational conditions

Specification	Value
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	0 - 90%

System requirements

Specification	Value
Mobile operating systems supported	Android, Windows Phone, iOS

Weight & dimensions

Specification	Value
Height	359.9 mm
Diameter	20.5 cm
Weight	5 kg

Packaging content

Specification	Value
Number of cameras	1

Technical details

Specification	Value
Iris	Yes
Maximum output level	1 Vpp
Output impedance	75 Ω
