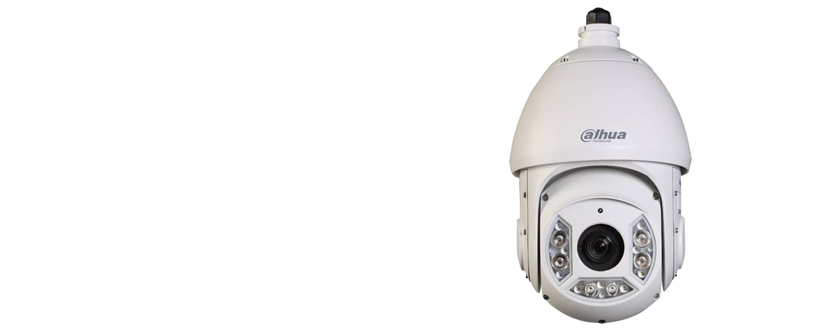

Dahua Technology DH-SD6CA230IN-HC security camera Dome IP security camera Indoor & outdoor

Dahua Technology DH-SD6CA230IN-HC security camera Dome IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling

Model DH-SD6CA230IN-HC

59 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight7.5 kg
  • ColourWhite
  • Form factorDome
  • Minimum illumination0.005 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
7.5 kg
Colour
White
Form factor
Dome
Minimum illumination
0.005 lx
Brand
Dahua Technology
Model
DH-SD6CA230IN-HC
Part number
DH-SD6CA230IN-HC
Also known as
Dahua Technology DH-SD6CA230IN-HC security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling

Specifications

59 specifications in 15 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
Auto pan modeYes
Tour recordingYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
International Protection (IP) codeIP66

Camera

Minimum illumination0.005 lx
Lens viewing angle, horizontal65.1°
Tilt angle range-15 - 90°
Tilt speed200 °/sec
Pan range0 - 360°
Pan speed240 °/sec
White balanceATW, Auto, Indoor, Manual, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/1 ~ 1/ 30.000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Zoom capabilityYes
Digital zoom16x
Focal length range4.3 - 129 mm
Auto focusYes
Maximum aperture number5

Night vision

LED typeIR
Number of illumination LEDs6

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Supported graphics resolutions1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate60 fps
Noise reductionYes
Automatic gain controlYes
Flip & mirrorYes
Privacy maskingYes

Audio

Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANNo
Wi-FiNo

Storage

Built-in HDDNo

Ports & interfaces

Microphone inYes
InterfaceBNC

Power

AC input voltage24 V
Power consumption (typical)10.5 W
Power consumption (max)26 W
Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Depth359.9 mm
Diameter20.5 cm
Weight7.5 kg

Packaging content

Number of cameras1
