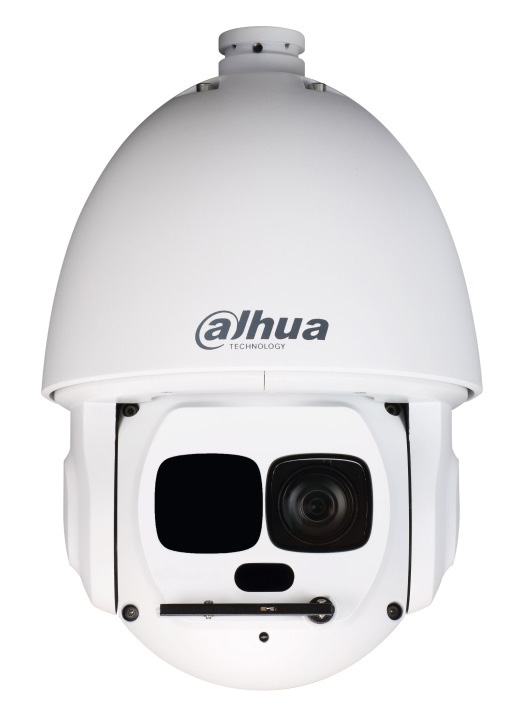

Dahua Technology Pro DH-SD6AL233XA-HNR-IR Dome IP security camera Outdoor
Dahua Technology

Pro DH-SD6AL233XA-HNR-IR Dome IP security camera Outdoor

1920 x 1080 pixels Ceiling/wall

Model DH-SD6AL233XA-HNR-IRPart no. SD6AL233XA-HNR-IR

104 specifications
  • Memory1024 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight5.8 kg
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
1024 MB
Connectivity
Wired
Type
IP security camera
Weight
5.8 kg
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
DH-SD6AL233XA-HNR-IR
Part number
SD6AL233XA-HNR-IR
Also known as
Dahua Technology Pro DH-SD6AL233XA-HNR-IR Dome IP security camera Outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

104 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes5 Pattern, 8 Tour, Preset point
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
CertificationCE: EN55032/EN55024/EN50130-4 FCC: 15 B,ANSI C63.4-2014

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Lens viewing angle, horizontal60.1°
Lens viewing angle, vertical35.3°
Lens viewing angle, diagonal67.9°
Tilt angle range-20 - 90°
Tilt speed120 °/sec
Pan range0 - 360°
Pan preset speed240 °/sec
Pan speed200 °/sec
White balanceAuto, Indoor, Manual, Natural, Outdoor, Sodium lamp
Camera shutter typeElectronic
Camera shutter speed1/3–1/30000

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom33x
Digital zoom16x
Detect distance1655 m
Observe distance622 m
Recognize distance331 m
Focal length range5.8 - 191.4 mm
FocusMotorized/Manual
Identify distance165 m
Maximum aperture number4.8
Minimum aperture number1.5
Closest focusing distance0.1 m

Night vision

Night visionYes
Night vision distance300 m
LED typeIR
Number of illumination LEDs1

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate3 kbps-20480 kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedAAC, PCM
Voice codecsG.711Mu, G.711a, G.722.1, G.726, G.729

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x
Supported network protocolsIPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory1024 MB
ROM capacity4000 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Microphone inYes
Headphone outputs1

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Intrusion, Missing object, Tripwire
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes

Power

Power source typeAC
AC input voltage24 V
Power consumption (max)32 W
DC output current3 A

Operational conditions

Operating temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height382 mm
Diameter24 cm
Weight5.8 kg

Packaging data

Package weight10.5 kg

Packaging content

Number of cameras1
